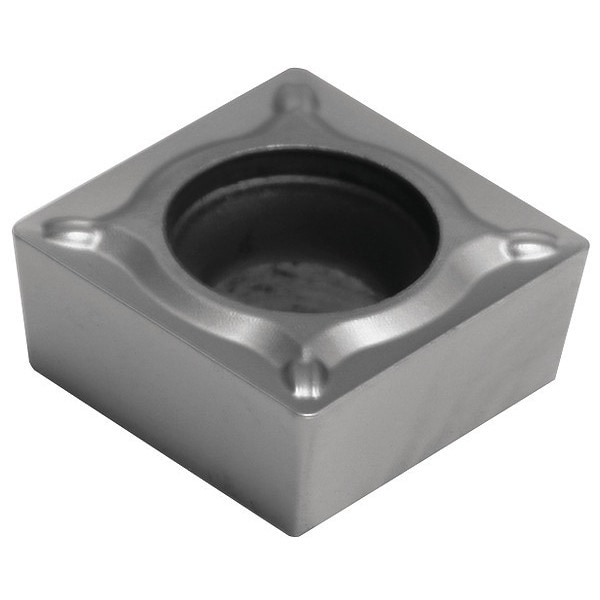

Square Turning Insert, Square, 3, SCMT, 2, Carbide

Name: Square Turning Insert, Square, 3, SCMT, 2, Carbide
Brand: Sumitomo
SKU: G7554007
Price: 132.90 USD
Availability: InStock

13.29

/ea

Sold in multiples of 10 for $132.90

Insert Shape

Square

Insert Style

SCMT

Inscribed Circle

3/8 in

Insert Size

32.52

Chip-Breaker

Yes

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Square Turning Insert
Insert Shape: Square
Insert Style: SCMT
Inscribed Circle: 3/8 in
Chip-Breaker: Yes
Grade: AC5015S
Insert Material: Carbide
Insert Application: Finishing
Rake: 8 Degrees
ISO Number: SCMT09T308N-SU
Workpiece Compatibility: Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
No. of Edges: 4
ANSI Number: SCMT32.52ESU
Non Ferrous (N) Compatibility: Yes
For Use With: Toolholders, Boring Bars
Super Alloy (S) Compatibility: Yes
Hardened (H) Compatibility: No
Steel (P) Compatibility: Yes
Cutting Direction: Neutral
Cast Iron (K) Compatibility: Yes
Coating: PVD
Mounting Style: Screw
Relief Angle: 7 Degrees
Stainless (M) Compatibility: Yes
Shape: Square
Measurement System: Fractional Inch
Material - Machining: Carbide
Chip-Breaker Style: On One Side
Number of Cutting Edges: 4
Coating Process: PVD
Features: Wear Resistant
Manufacturer Grade: AC5015S
ANSI Code: SCMT32.52ESU
Primary Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Cutting Application: Turning
Finish - Machining: AlTiSiN
Included Angle: 90 Degrees
Clearance Angle: 7 Degrees
Insert Holding Type: Countersink Hole
Chip-Breaker Code: ESU
Primary Material Application ISO Code: K, M, N, P, S
Material: Carbide

Square Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, AlTiSiN
