  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

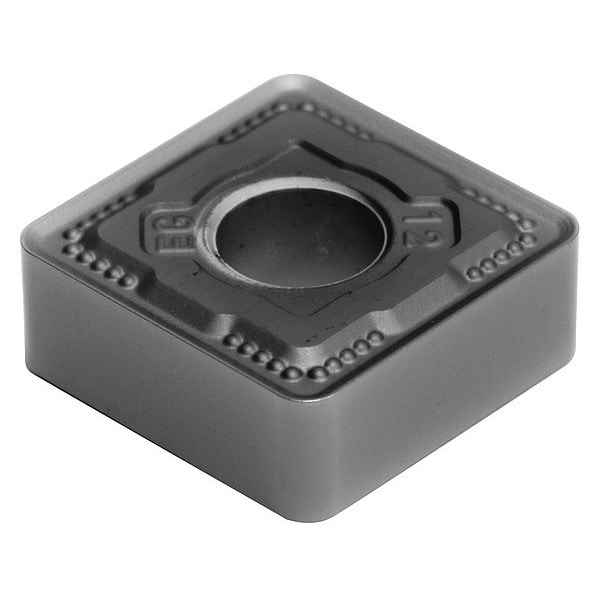

Sumitomo Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432EEG-AC5015S - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432EEG-AC5015S

  • Zoro # G7554646

product price: $8.89
/ea
Sold in multiples of 10 for $88.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432EEG-AC5015S
Zoro #
G7554646
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Nose Radius
0.031"
Insert Thickness
0.187"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
Negative
ISO Number
SNMG120408N-EG
Super Alloy (S) Compatibility
Yes
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Coating
PVD
Non Ferrous (N) Compatibility
Yes
No. of Edges
8
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
ANSI Number
SNMG432EEG
Mounting Style
Screw
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Clearance Angle
0 Degrees
Manufacturer Grade
AC5015S
Material - Machining
Carbide
Cutting Application
Turning
ANSI Code
SNMG432EEG
Shape
Square
Insert Holding Type
Straight Hole
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Coating Process
PVD
Number of Cutting Edges
8
Measurement System
Fractional Inch
Features
Wear Resistant
Included Angle
90 Degrees
Chip-Breaker Style
Double Sided
Chip-Breaker Code
EEG
Primary Material Application ISO Code
K, M, N, P, S
Finish - Machining
AlTiSiN
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code EEG, Inscribed Circle 1/2 in, AlTiSiN
