  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

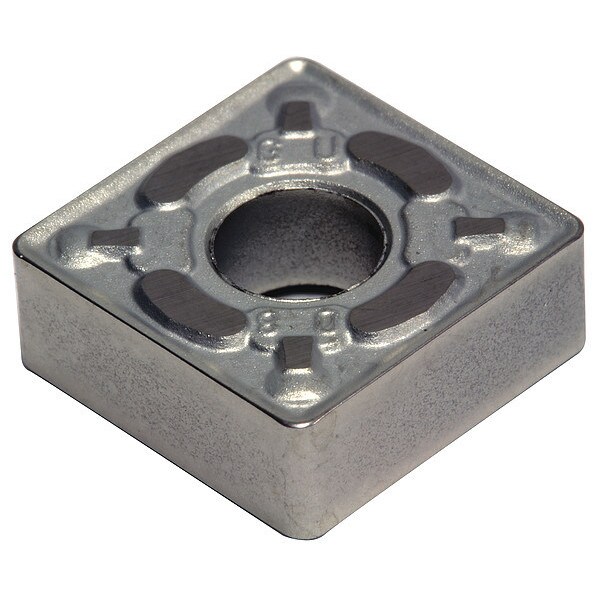

Sumitomo Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432EGU-AC5015S - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432EGU-AC5015S

  • Zoro # G7554567

product price: $8.89
/ea
Sold in multiples of 10 for $88.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432EGU-AC5015S
Zoro #
G7554567
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.187"
Nose Radius
0.031"
Mounting Hole Dia.
0.203"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
Negative
ISO Number
SNMG120408N-GU
Non Ferrous (N) Compatibility
Yes
Mounting Style
Screw
ANSI Number
SNMG432EGU
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Coating
PVD
Relief Angle
0 Degrees
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
No. of Edges
8
Included Angle
90 Degrees
Material - Machining
Carbide
Cutting Application
Turning
Coating Process
PVD
ANSI Code
SNMG432EGU
Number of Cutting Edges
8
Shape
Square
Chip-Breaker Style
Double Sided
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Chip-Breaker Code
EGU
Primary Material Application ISO Code
K, M, N, P, S
Clearance Angle
0 Degrees
Finish - Machining
AlTiSiN
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Features
Wear Resistant
Manufacturer Grade
AC5015S
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 1/2 in, AlTiSiN
