Sumitomo

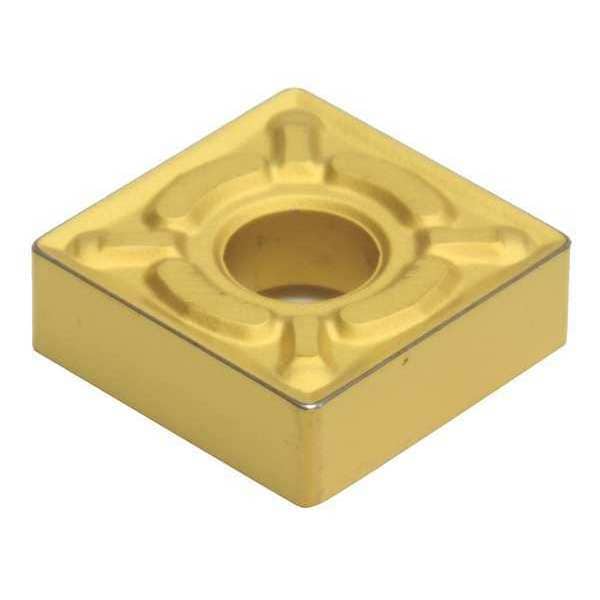

Square Turning Insert, Square, 4, SNMG, 2, Carbide

product price: $8.55
/ea
Sold in multiples of 10 for $85.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Square
  • Insert Style SNMG
  • Inscribed Circle 4
  • Insert Size 432
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Size 432
Corner Radius 2
Mounting Hole Dia. 0.203"
Nose Radius 0.0313"

Details

Item Square Turning Insert
Insert Shape Square
Insert Style SNMG
Inscribed Circle 4
Chip-Breaker Yes
Grade AC810P
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Insert Material Carbide
Insert Application Medium
ANSI Number SNMG432EGU-AC810P
No. of Edges 4
Insert Thickness 0.1875"
For Use With Toolholders, Boring Bars
Rake Positive
ISO Number SNMG120408NGU
Coating CVD
Stainless (M) Compatibility Yes
Non Ferrous (N) Compatibility No
Cutting Direction Neutral
Steel (P) Compatibility Yes
Super Alloy (S) Compatibility No
Hardened (H) Compatibility No
Mounting Style Top and hole Clamping
Cast Iron (K) Compatibility Yes
Coating Process CVD
Thickness 3
Material - Machining Carbide
Cutting Application Turning
Chip-Breaker Style Double Sided
Finish - Machining Al203+TiCN
Features Wear Resistant
Shape Square
Measurement System Fractional Inch
Number of Cutting Edges 4
Included Angle 90 Degrees
Primary Material Application ISO Code P10
Chip-Breaker Code EGU
Manufacturer Grade AC810P
Insert Holding Type Straight Hole
Clearance Angle 0 Degrees
Primary Material Application Steel
ANSI Code SNMG432EGU

Description

Square Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 1/2 in, Al203+TiCN
