  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

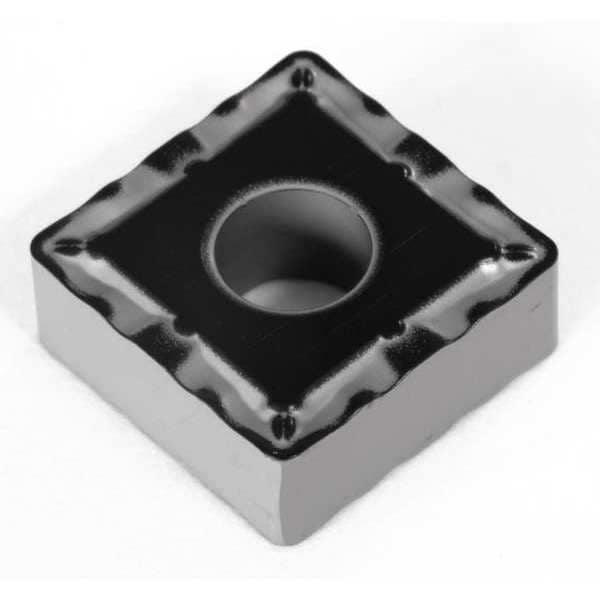

Sumitomo Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432ESX-AC8025P - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432ESX-AC8025P

  • Zoro # G6318588

product price: $11.15
/ea
Sold in multiples of 10 for $111.50

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432ESX-AC8025P
Zoro #
G6318588
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.203"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
SNMG120408N-SX
Cutting Direction
Neutral
ANSI Number
SNMG432ESX-AC8025P
Coating
Uncoated
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
No. of Edges
4
Super Alloy (S) Compatibility
No
Mounting Style
Top and hole Clamping
Hardened (H) Compatibility
No
Material - Machining
Carbide
Shape
Square
Number of Cutting Edges
4
Insert Holding Type
Straight Hole
Coating Process
CVD
Primary Material Application
Steel
Measurement System
Fractional Inch
Features
Adhesion Resistant, Chipping Resistant
Included Angle
90 Degrees
Chip-Breaker Code
ESX
ANSI Code
SNMG432ESX
Clearance Angle
0 Degrees
Finish - Machining
Absotech Platinum
Manufacturer Grade
AC8025P
Primary Material Application ISO Code
P25
Cutting Application
Turning
Chip-Breaker Style
Double Sided
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code ESX, Inscribed Circle 1/2 in, Absotech Platinum
