  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

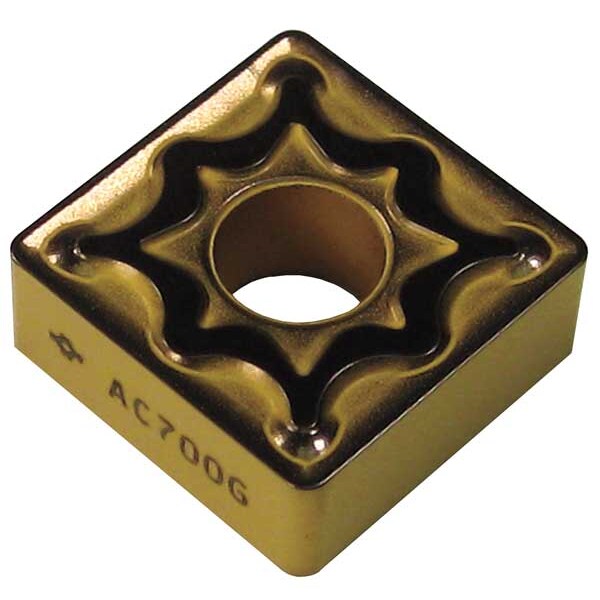

Sumitomo Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432EUX-AC830P - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432EUX-AC830P

  • Zoro # G2354899

product price: $11.45
/ea
Sold in multiples of 10 for $114.50

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432EUX-AC830P
Zoro #
G2354899
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.0312"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
SNMG120408NUX
Relief Angle
0 Degrees
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
For Use With
MSDNN,MSRN Toolholders, A-MSKN Boring Bars
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
ANSI Number
SNMG432EUX-AC830P
Steel (P) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Coating
Super FF TiCN/Al2O3/TiN CVD
No. of Edges
8
Shape
Square
Manufacturer Grade
AC830P
Chip-Breaker Code
EUX
Primary Material Application
Steel
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Number of Cutting Edges
8
Included Angle
90 Degrees
Primary Material Application ISO Code
P
Coating Process
CVD
Measurement System
Fractional Inch
ANSI Code
SNMG432EUX
Chip-Breaker Style
Double Sided
Cutting Application
Turning
Clearance Angle
0 Degrees
Features
Wear Resistant
Finish - Machining
Al203+TiCN
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 1/2 in, Al203+TiCN
