  11. Triangle Turning Insert, Triangle, 1/4 in, TCGT, 0.0156 in, Carbide

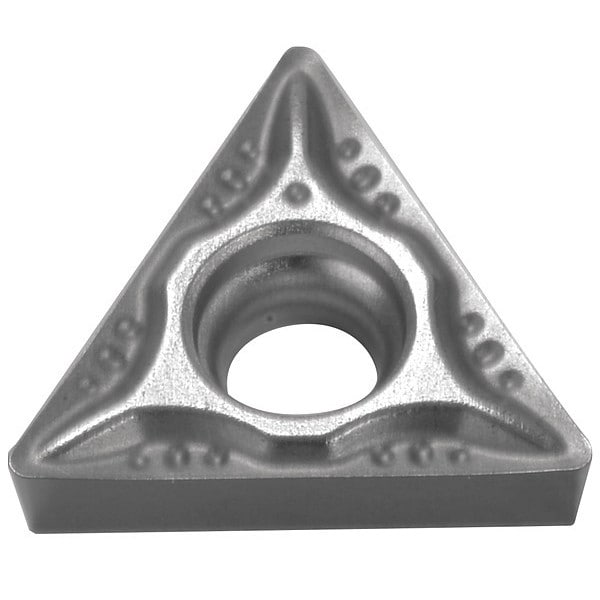

Sumitomo Triangle Turning Insert, Triangle, 1/4 in, TCGT, 0.0156 in, Carbide TCGT21.51MESI-AC5015S - main

Triangle Turning Insert, Triangle, 1/4 in, TCGT, 0.0156 in, Carbide

  • Mfr # TCGT21.51MESI-AC5015S

  • Zoro # G7555407

product price: $9.89
/ea
Sold in multiples of 10 for $98.90

Key Features

Insert Shape
Triangle
Insert Style
TCGT
Inscribed Circle
1/4 in
Insert Size
21.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCGT21.51MESI-AC5015S
Zoro #
G7555407
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.51
Corner Radius
0.0156 in
Insert Thickness
0.093"
Mounting Hole Dia.
0.110"
Nose Radius
0.015"
Through Hole Inside Dia.
0.11 in
Thickness
0.0937 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TCGT
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
15 Degrees
ISO Number
TCGT110204MN-SI
ANSI Number
TCGT21.51MESI
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Mounting Style
Screw
Non Ferrous (N) Compatibility
Yes
Relief Angle
7 Degrees
Coating
PVD
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
No. of Edges
3
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
Yes
Steel (P) Compatibility
Yes
Measurement System
Fractional Inch
Chip-Breaker Code
MESI
Chip-Breaker Style
On One Side
Finish - Machining
AlTiSiN
Material - Machining
Carbide
Insert Holding Type
Countersink Hole
Number of Cutting Edges
3
Clearance Angle
7 Degrees
Cutting Application
Turning
Coating Process
PVD
Primary Material Application
Nickel, Titanium
Manufacturer Grade
AC5015S
Shape
Triangle
Included Angle
60 Degrees
Primary Material Application ISO Code
S01 - S20
Features
Excellent Wear Resistance
ANSI Code
TCGT21.51MESI
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 1/4 in, AlTiSiN
