  11. Triangle Turning Insert, Triangle, 1/4 in, TCMT, 0.0312 in, Cermet

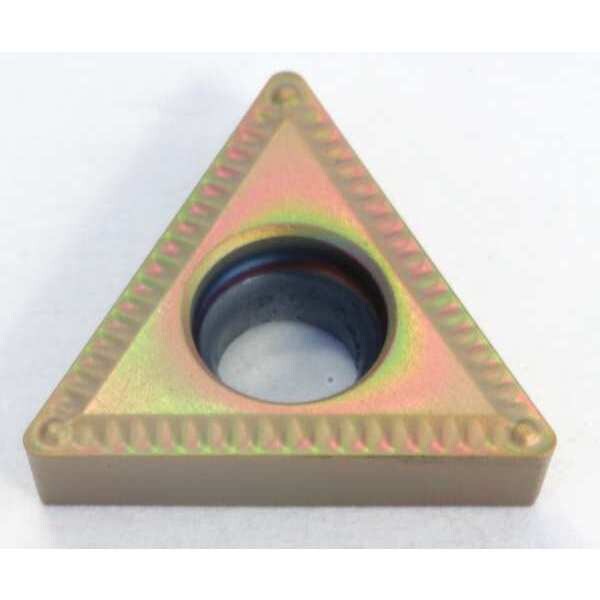

Sumitomo Triangle Turning Insert, Triangle, 1/4 in, TCMT, 0.0312 in, Cermet TCMT21.52EFB-T1500Z - main

Triangle Turning Insert, Triangle, 1/4 in, TCMT, 0.0312 in, Cermet

  • Mfr # TCMT21.52EFB-T1500Z

  • Zoro # G6315106

product price: $7.79
/ea
Sold in multiples of 10 for $77.90

Key Features

Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
1/4 in
Insert Size
21.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCMT21.52EFB-T1500Z
Zoro #
G6315106
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.52
Corner Radius
0.0312 in
Nose Radius
0.0313"
Insert Thickness
0.0940"
Mounting Hole Dia.
0.110"
Through Hole Inside Dia.
0.11 in
Thickness
0.0937 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
20 Degrees
ISO Number
TCMT110208N-FB
Hardened (H) Compatibility
No
Mounting Style
Screw-On
Coating
CVD
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
No. of Edges
3
Non Ferrous (N) Compatibility
No
ANSI Number
TCMT21.52EFB-T1500Z
Workpiece Compatibility
Stainless (M), Steel (P)
Coating Process
PVD
Number of Cutting Edges
3
Primary Material Application ISO Code
P
Insert Holding Type
Countersink Hole
Material - Machining
Cermet
Chip-Breaker Code
EFB
Primary Material Application
Steel
Features
Excellent Wear Resistance
Shape
Triangle
Included Angle
60 Degrees
Chip-Breaker Style
On One Side
ANSI Code
TCMT21.52EFB
Clearance Angle
7 Degrees
Cutting Application
Turning
Manufacturer Grade
T1500Z
Measurement System
Fractional Inch
Material
Cermet

Description

Triangle Turning Insert, Chip-Breaker Code EFB, Inscribed Circle 1/4 in
