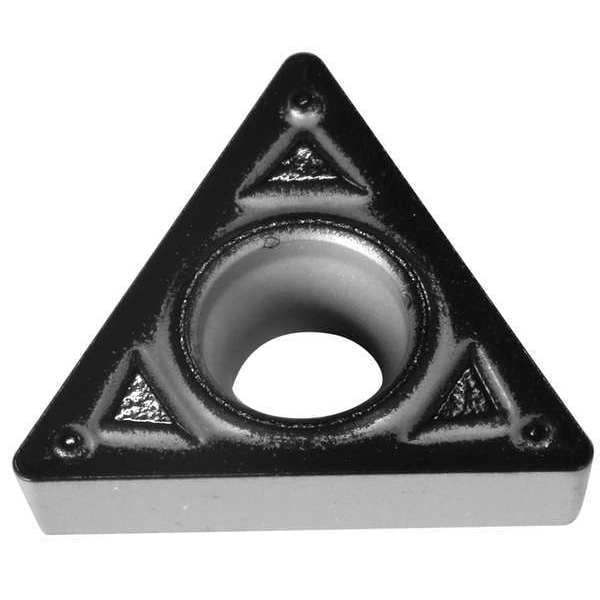

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TCMT, 0.0312 in, Carbide TCMT32.52ENK-AC8025P - main

Triangle Turning Insert, Triangle, 3/8 in, TCMT, 0.0312 in, Carbide

  • Mfr # TCMT32.52ENK-AC8025P

  • Zoro # G6314835

product price: $13.49
/ea
Sold in multiples of 10 for $134.90

Key Features

Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
3/8 in
Insert Size
32.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCMT32.52ENK-AC8025P
Zoro #
G6314835
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.52
Corner Radius
0.0312 in
Mounting Hole Dia.
0.169"
Nose Radius
0.0156"
Insert Thickness
0.1560"
Thickness
0.1562 in
Through Hole Inside Dia.
0.1693 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
TCMT16T308N-SK
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
ANSI Number
TCMT32.52ENK-AC8025P
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
No. of Edges
3
Coating
PVD
Mounting Style
Top and hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Finish - Machining
Absotech Platinum
Material - Machining
Carbide
Chip-Breaker Style
On One Side
Measurement System
Fractional Inch
Clearance Angle
7 Degrees
Insert Holding Type
Countersink Hole
ANSI Code
TCMT32.52ENK
Chip-Breaker Code
ENK
Manufacturer Grade
AC8025P
Number of Cutting Edges
3
Shape
Triangle
Included Angle
60 Degrees
Features
Adhesion Resistant, Chipping Resistant
Cutting Application
Turning
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Coating Process
CVD
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ENK, Inscribed Circle 3/8 in, Absotech Platinum
