  11. Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0156 in, CBN

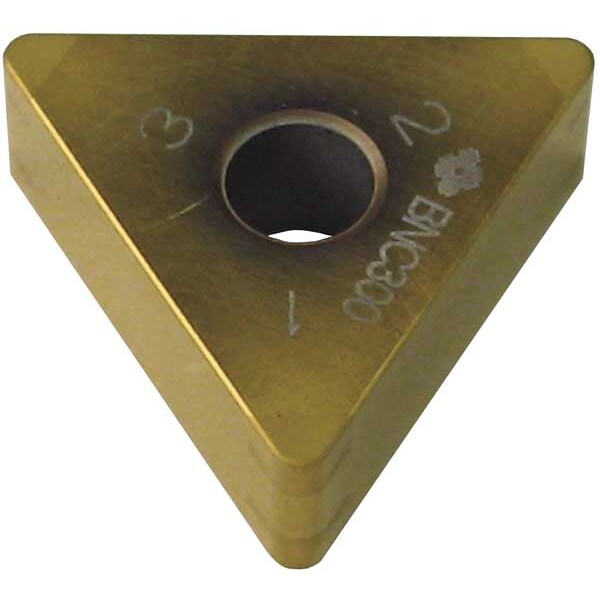

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0156 in, CBN 6NCTNGA331-BNC300 - main

Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0156 in, CBN

  • Mfr # 6NCTNGA331-BNC300

  • Zoro # G5823255

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Triangle
Insert Style
TNGA
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6NCTNGA331-BNC300
Zoro #
G5823255
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Mounting Hole Dia.
0.150
Insert Thickness
0.1875"
Nose Radius
0.0157"
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in
Depth of Cut
0.0150 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNGA
Inscribed Circle
3/8 in
Chip-Breaker
No
Grade
BNC300
Insert Material
CBN
Insert Application
Roughing
Rake
Negative
ISO Number
6NC-TNGA160404
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
No. of Edges
6
Coating
TiAlN
Relief Angle
0 Degrees
Cutting Direction
Neutral
Stainless (M) Compatibility
No
For Use With
MTAN, MTENN, MTGN Toolholders, A-MTFN Boring Bars
Mounting Style
Clamp
ANSI Number
6NCTNGA331-BNC300
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P)
Hardened (H) Compatibility
Yes
ANSI Code
6NC-TNGA331
Primary Material Application
Hardened Steel
Shape
Triangle
Finish - Machining
TiN
Measurement System
Fractional Inch
Primary Material Application ISO Code
H
Cutting Material Coverage
Mini Tip
Clearance Angle
0 Degrees
Cutting Application
Turning
Manufacturer Grade
BNC300
Insert Holding Type
Straight Hole
Material - Machining
CBN
Included Angle
60 Degrees
Material
CBN

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, TiN
