  11. Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0312 in, CBN

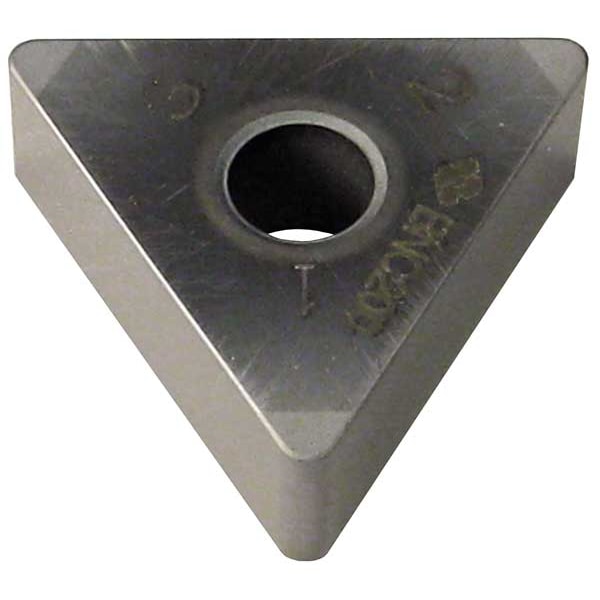

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0312 in, CBN 6NCTNGA332-BNC200 - main

Triangle Turning Insert, Triangle, 3/8 in, TNGA, 0.0312 in, CBN

  • Mfr # 6NCTNGA332-BNC200

  • Zoro # G5550867

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Triangle
Insert Style
TNGA
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6NCTNGA332-BNC200
Zoro #
G5550867
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
332
Corner Radius
0.0312 in
Insert Thickness
0.1875"
Nose Radius
0.0312"
Mounting Hole Dia.
0.150
Depth of Cut
0.0150 in
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNGA
Inscribed Circle
3/8 in
Chip-Breaker
No
Grade
BNC200
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
ISO Number
6NC-TNGA160408
No. of Edges
6
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
Yes
ANSI Number
6NCTNGA332-BNC200
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
For Use With
MTAN, MTENN, MTGN Toolholders, A-MTFN Boring Bars
Coating
TiAlN
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
Mounting Style
Clamp
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P)
Primary Material Application
Hardened Steel
Manufacturer Grade
BNC200
Finish - Machining
TiN
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Primary Material Application ISO Code
H
Cutting Application
Turning
Clearance Angle
0 Degrees
Material - Machining
CBN
ANSI Code
6NC-TNGA332
Cutting Material Coverage
Mini Tip
Included Angle
60 Degrees
Shape
Triangle
Features
Wear Resistant
Material
CBN

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, TiN
