  11. Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide

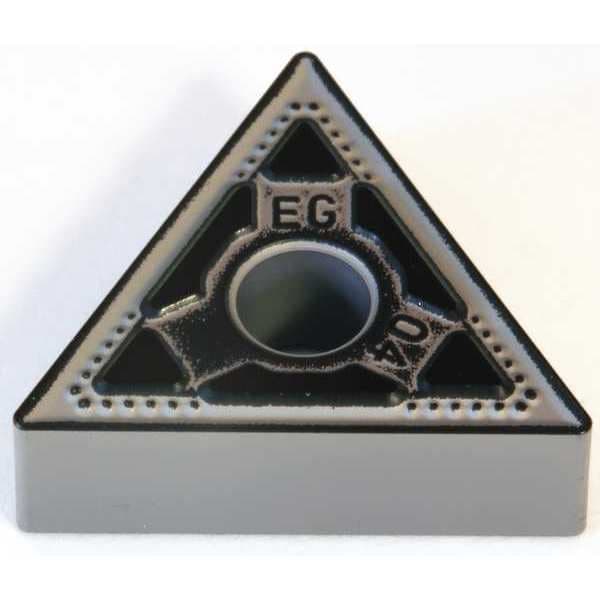

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide TNMG331EEG-AC8025P - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide

  • Mfr # TNMG331EEG-AC8025P

  • Zoro # G6314150

product price: $9.95
/ea
Sold in multiples of 10 for $99.50

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG331EEG-AC8025P
Zoro #
G6314150
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Medium
Rake
30 Degrees
ISO Number
TNMG160404N-EG
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
ANSI Number
TNMG331EEG-AC8025P
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
No. of Edges
3
Coating
CVD
Stainless (M) Compatibility
Yes
Mounting Style
Top and hole Clamping
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Primary Material Application
Steel
Features
Adhesion Resistant, Chipping Resistant
ANSI Code
TNMG331EEG
Clearance Angle
0 Degrees
Chip-Breaker Style
Double Sided
Shape
Triangle
Insert Holding Type
Straight Hole
Coating Process
CVD
Primary Material Application ISO Code
P25
Included Angle
60 Degrees
Material - Machining
Carbide
Manufacturer Grade
AC8025P
Finish - Machining
Absotech Platinum
Cutting Application
Turning
Chip-Breaker Code
EEG
Number of Cutting Edges
3
Measurement System
Fractional Inch
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code EEG, Inscribed Circle 3/8 in, Absotech Platinum
