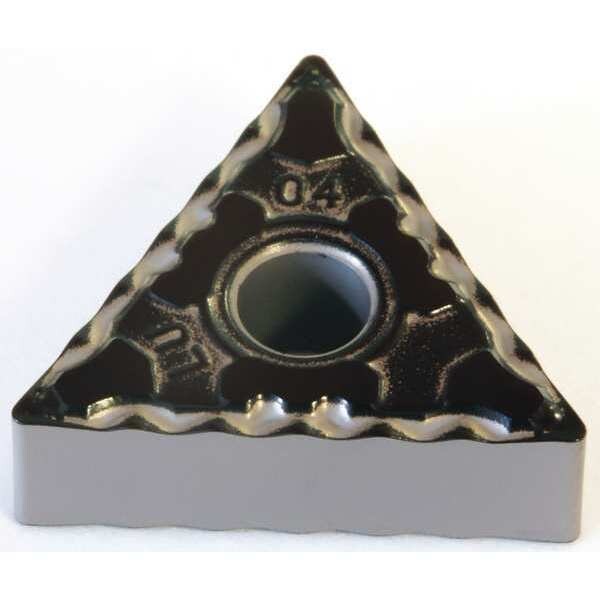

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide TNMG331ELU-AC8025P - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide

  • Mfr # TNMG331ELU-AC8025P

  • Zoro # G6313977

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG331ELU-AC8025P
Zoro #
G6313977
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Nose Radius
0.0156"
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
12 Degrees
ISO Number
TNMG160404N-LU
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Mounting Style
Screw-On
Coating
CVD
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
ANSI Number
TNMG331ELU-AC8025P
No. of Edges
3
Insert Holding Type
Straight Hole
Material - Machining
Carbide
Features
Adhesion Resistant, Chipping Resistant
Chip-Breaker Style
Double Sided
Finish - Machining
Absotech Platinum
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Coating Process
CVD
Shape
Triangle
Clearance Angle
0 Degrees
Number of Cutting Edges
3
Cutting Application
Turning
Manufacturer Grade
AC8025P
Included Angle
60 Degrees
Chip-Breaker Code
ELU
Measurement System
Fractional Inch
ANSI Code
TNMG331ELU
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, Absotech Platinum
