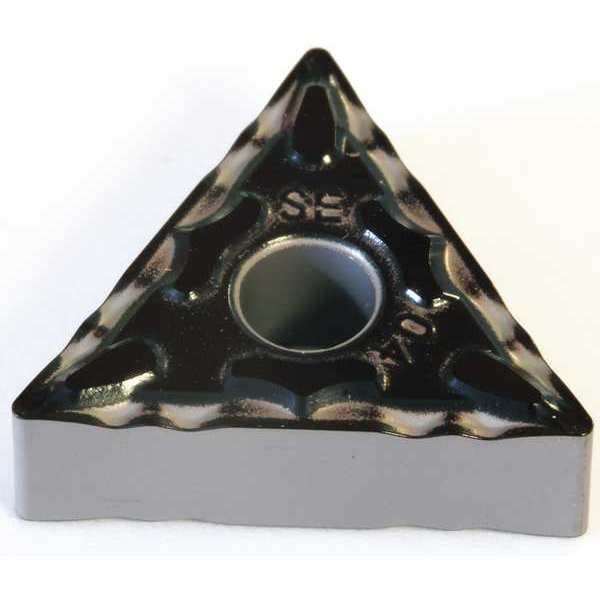

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide TNMG331ESE-AC8025P - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide

  • Mfr # TNMG331ESE-AC8025P

  • Zoro # G6313916

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG331ESE-AC8025P
Zoro #
G6313916
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Nose Radius
0.0156"
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
5 Degrees
ISO Number
TNMG160404N-SE
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
No. of Edges
3
Coating
PVD
Super Alloy (S) Compatibility
No
Mounting Style
Top and hole Clamping
ANSI Number
TNMG331ESE-AC8025P
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Insert Holding Type
Straight Hole
Primary Material Application
Steel
Manufacturer Grade
AC8025P
Cutting Application
Turning
Material - Machining
Carbide
Chip-Breaker Style
Double Sided
Chip-Breaker Code
ESE
Primary Material Application ISO Code
P25
Features
Adhesion Resistant, Chipping Resistant
Number of Cutting Edges
3
Shape
Triangle
Included Angle
60 Degrees
Clearance Angle
0 Degrees
Finish - Machining
Absotech Platinum
Coating Process
CVD
ANSI Code
TNMG331ESE
Measurement System
Fractional Inch
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ESE, Inscribed Circle 3/8 in, Absotech Platinum
