  11. Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

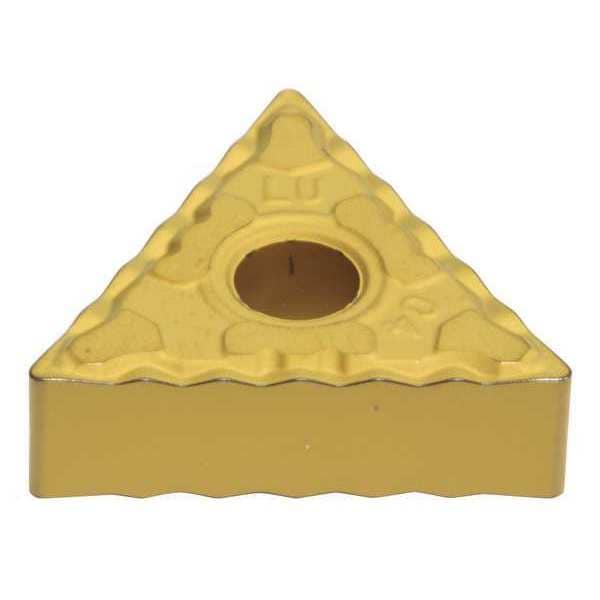

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide TNMG332ELU-AC810P - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

  • Mfr # TNMG332ELU-AC810P

  • Zoro # G6313435

product price: $8.95
/ea
Sold in multiples of 10 for $89.50

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG332ELU-AC810P
Zoro #
G6313435
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
0.0312 in
Mounting Hole Dia.
0.150"
Nose Radius
0.0313"
Insert Thickness
0.1875"
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Finishing
Rake
12 Degrees
ISO Number
TNMG160408N-LU
Steel (P) Compatibility
Yes
No. of Edges
3
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cutting Direction
Neutral
ANSI Number
TNMG332ELU-AC810P
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
Coating
CVD
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Mounting Style
Screw-On
Cast Iron (K) Compatibility
Yes
Number of Cutting Edges
3
Shape
Triangle
Clearance Angle
0 Degrees
Manufacturer Grade
AC810P
Coating Process
CVD
Measurement System
Fractional Inch
Included Angle
60 Degrees
Insert Holding Type
Straight Hole
Chip-Breaker Code
ELU
Primary Material Application ISO Code
P
ANSI Code
TNMG332ELU
Chip-Breaker Style
Double Sided
Features
Excellent Wear Resistance
Cutting Application
Turning
Material - Machining
Carbide
Primary Material Application
Steel
Finish - Machining
Al203+TiCN
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, Al203+TiCN
