  11. Triangle Turning Insert, Triangle, 3/8 in, TNMX, 0.0156 in, PCD

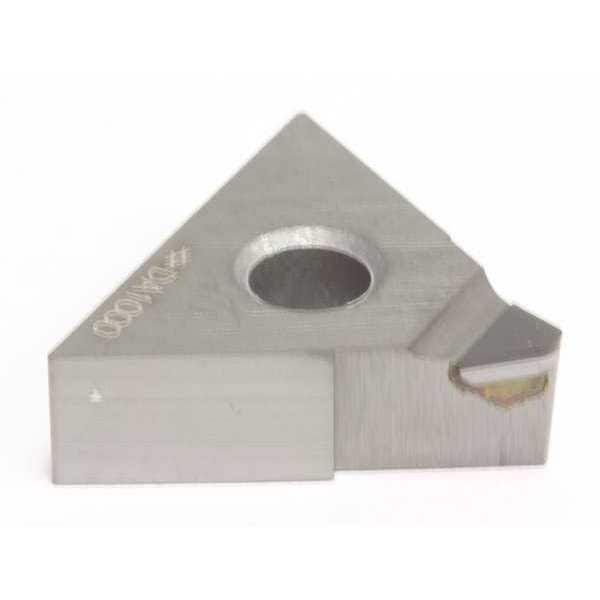

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNMX, 0.0156 in, PCD NFTNMX331-DA1000 - main

Triangle Turning Insert, Triangle, 3/8 in, TNMX, 0.0156 in, PCD

  • Mfr # NFTNMX331-DA1000

  • Zoro # G6307187

product price: $69.85
/ea

Key Features

Insert Shape
Triangle
Insert Style
TNMX
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NFTNMX331-DA1000
Zoro #
G6307187
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Nose Radius
0.0156"
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMX
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
DA1000
Insert Material
PCD
Insert Application
Finishing
Rake
10 Degrees
ISO Number
NF-TNMX160404
Non Ferrous (N) Compatibility
Yes
Coating
CVD
ANSI Number
NFTNMX331-DA1000
No. of Edges
1
Workpiece Compatibility
Nonferrous (N), Super Alloy (S)
Hardened (H) Compatibility
No
Mounting Style
Top and hole Clamping
Stainless (M) Compatibility
No
Cutting Direction
Neutral
Steel (P) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cutting Material Coverage
NF Tip
Chip-Breaker Style
10 Degrees Rake Angle
Primary Material Application ISO Code
N
Shape
Triangle
Cutting Application
Turning
Manufacturer Grade
DA1000
Material - Machining
Polycrystalline Diamond
Clearance Angle
0 Degrees
ANSI Code
NF-TNMX331
Features
Fracture Resistant, Wear Resistant
Coating Process
CVD
Insert Holding Type
Straight or Countersink Hole
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Included Angle
60 Degrees
Material
PCD

Description

Triangle Turning Insert, Inscribed Circle 3/8 in

Restrictions
