  11. Triangle Turning Insert, Triangle, 3/8 in, TNPR, 0.0156 in, Cermet

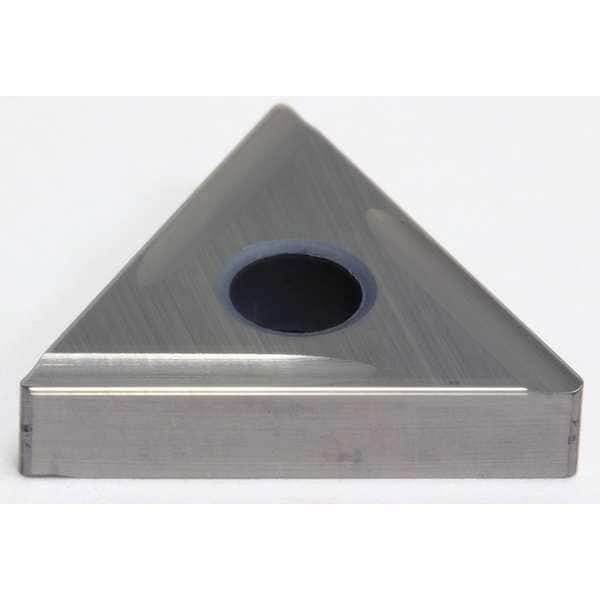

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TNPR, 0.0156 in, Cermet TNPR331M-T1500A - main

Triangle Turning Insert, Triangle, 3/8 in, TNPR, 0.0156 in, Cermet

  • Mfr # TNPR331M-T1500A

  • Zoro # G6311055

product price: $14.79
/ea
Sold in multiples of 10 for $147.90

Key Features

Insert Shape
Triangle
Insert Style
TNPR
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNPR331M-T1500A
Zoro #
G6311055
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Mounting Hole Dia.
0.150"
Nose Radius
0.0156"
Insert Thickness
0.1875"
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNPR
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
14 Degrees
ISO Number
TNGG160404R-UM
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
No. of Edges
3
Cast Iron (K) Compatibility
No
Mounting Style
Top and hole Clamping
Non Ferrous (N) Compatibility
No
Coating
Uncoated
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
ANSI Number
TNPR331M-T1500A
Steel (P) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
ANSI Code
TNPR331M
Primary Material Application ISO Code
M, P
Included Angle
60 Degrees
Insert Holding Type
Screw
Number of Cutting Edges
3
Shape
Triangle
Clearance Angle
0 Degrees
Chip-Breaker Code
M
Material - Machining
Cermet
Measurement System
Fractional Inch
Features
Fracture Resistant, Wear Resistant
Cutting Application
Turning
Manufacturer Grade
T1500A
Primary Material Application
Stainless Steel, Steel
Material
Cermet

Description

Triangle Turning Insert, Chip-Breaker Code M, Inscribed Circle 3/8 in
