  11. Triangle Turning Insert, Triangle, 3/8 in, TPG, 0.0312 in, CBN

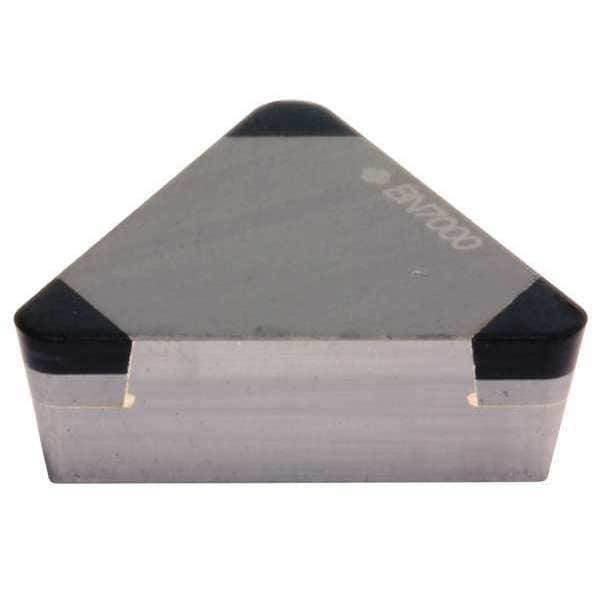

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TPG, 0.0312 in, CBN 3NUTPG322-BN7000 - main

Triangle Turning Insert, Triangle, 3/8 in, TPG, 0.0312 in, CBN

  • Mfr # 3NUTPG322-BN7000

  • Zoro # G6371937

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Triangle
Insert Style
TPG
Inscribed Circle
3/8 in
Insert Size
322
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3NUTPG322-BN7000
Zoro #
G6371937
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
322
Corner Radius
0.0312 in
Insert Thickness
0.1250"
Nose Radius
0.0313"
Depth of Cut
0.0150 in
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPG
Inscribed Circle
3/8 in
Chip-Breaker
No
Grade
BN7000
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
3NU-TPGN160308
Coating
CVD
Mounting Style
Screw-On
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Cast Iron (K), Super Alloy (S)
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
ANSI Number
3NUTPG322-BN7000
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
No. of Edges
3
Material - Machining
CBN
Cutting Material Coverage
Multi-Mini Tip
Cutting Application
Turning
Included Angle
60 Degrees
Finish - Machining
Bright (Uncoated)
Clearance Angle
11 Degrees
Primary Material Application ISO Code
K
Measurement System
Fractional Inch
Number of Cutting Edges
3
Manufacturer Grade
BN7000
ANSI Code
3NU-TPG322
Primary Material Application
Cast Iron
Insert Holding Type
No Screw Hole
Features
Fracture Resistant, Wear Resistant
Coating Process
CVD
Shape
Triangle
Material
CBN

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated)
