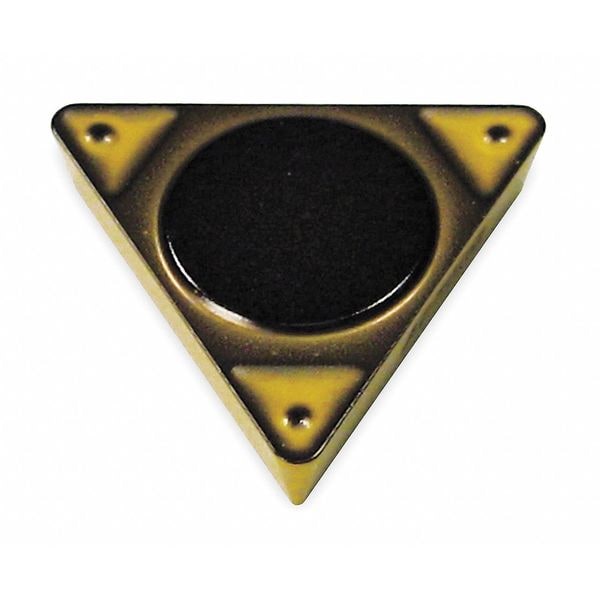

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TPMR, 0.0156 in, Carbide TPMR321ENF-AC830P - main

Triangle Turning Insert, Triangle, 3/8 in, TPMR, 0.0156 in, Carbide

  • Mfr # TPMR321ENF-AC830P

  • Zoro # G3764652

product price: $13.75
/ea
Sold in multiples of 10 for $137.50

Key Features

Insert Shape
Triangle
Insert Style
TPMR
Inscribed Circle
3/8 in
Insert Size
321
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMR321ENF-AC830P
Zoro #
G3764652
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
321
Corner Radius
0.0156 in
Insert Thickness
0.125"
Nose Radius
0.0157"
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMR
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Finishing
Rake
0 Degrees
ISO Number
TPMR322ENF
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Coating
Super FF TiCN/Al2O3/TiN CVD
No. of Edges
3
Non Ferrous (N) Compatibility
No
Mounting Style
Screw-On
For Use With
A-CTFP, S-TFP Boring Bars
Cutting Direction
Neutral
ANSI Number
TPMR321ENF-AC830P
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Relief Angle
11 Degrees
Finish - Machining
Al203+TiCN
Measurement System
Fractional Inch
Chip-Breaker Style
On One Side
Cutting Application
Turning
Number of Cutting Edges
3
Shape
Triangle
Primary Material Application
Steel
Included Angle
60 Degrees
Coating Process
CVD
Clearance Angle
11 Degrees
Chip-Breaker Code
ENF
Material - Machining
Carbide
Primary Material Application ISO Code
P
ANSI Code
TPMR321ENF
Manufacturer Grade
AC830P
Features
Fracture Resistant, Wear Resistant
Insert Holding Type
No Screw Hole
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ENF, Inscribed Circle 3/8 in, Al203+TiCN
