  11. Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0156 in, Carbide

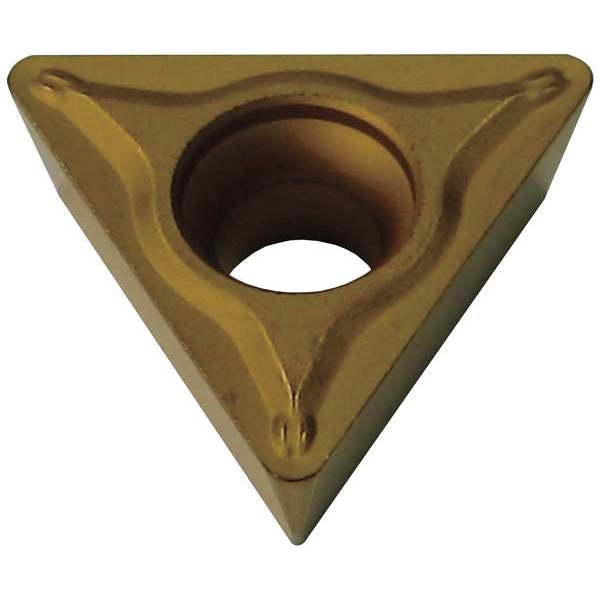

Sumitomo Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0156 in, Carbide TPMT331ESU-AC830P - main

Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0156 in, Carbide

  • Mfr # TPMT331ESU-AC830P

  • Zoro # G3762613

product price: $11.95
/ea
Sold in multiples of 10 for $119.50

Key Features

Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Insert Size
0.375"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMT331ESU-AC830P
Zoro #
G3762613
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
0.375"
Corner Radius
0.0156 in
Mounting Hole Dia.
0.169
Insert Thickness
0.1875"
Nose Radius
0.0157"
Thickness
0.1875 in
Through Hole Inside Dia.
0.1693 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Finishing
Rake
13 Degrees
ISO Number
TPMT160404NSU
Relief Angle
11 Degrees
Mounting Style
Screw-On
For Use With
STAP, Toolholders, A-STFP Boring Bars
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Coating
Super FF TiCN/Al2O3/TiN CVD
ANSI Number
TPMT331ESU-AC830P
No. of Edges
3
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Insert Holding Type
Countersink Hole
Material - Machining
Carbide
Manufacturer Grade
AC830P
Coating Process
CVD
Number of Cutting Edges
3
Finish - Machining
Al203+TiCN
Cutting Application
Turning
Clearance Angle
11 Degrees
Chip-Breaker Style
On One Side
Included Angle
60 Degrees
Features
Fracture Resistant, Wear Resistant
Measurement System
Fractional Inch
Chip-Breaker Code
ESU
Primary Material Application
Steel
Primary Material Application ISO Code
P
Shape
Triangle
ANSI Code
TPMT331ESU
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, Al203+TiCN
