  11. Triangle Turning Insert, Triangle, 5/8 in, TBGE, 0.0156 in, CBN

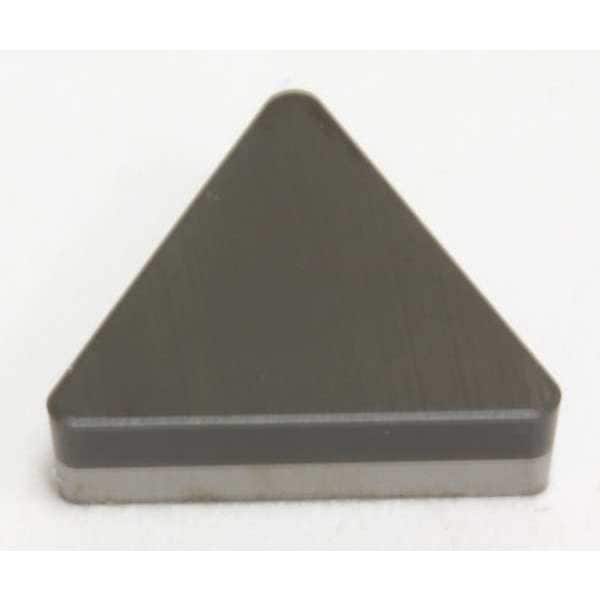

Sumitomo Triangle Turning Insert, Triangle, 5/8 in, TBGE, 0.0156 in, CBN TBGE521B-BN2000 - main

Triangle Turning Insert, Triangle, 5/8 in, TBGE, 0.0156 in, CBN

  • Mfr # TBGE521B-BN2000

  • Zoro # G6304509

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Triangle
Insert Style
TBGE
Inscribed Circle
5/8 in
Insert Size
521
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBGE521B-BN2000
Zoro #
G6304509
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
521
Corner Radius
0.0156 in
Insert Thickness
0.0625"
Nose Radius
0.0156"
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TBGE
Inscribed Circle
5/8 in
Chip-Breaker
No
Grade
BN2000
Insert Material
CBN
Insert Application
Finishing
Rake
0 Degrees
ISO Number
TBGE060104B
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S)
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
No
No. of Edges
3
ANSI Number
TBGE521B-BN2000
Coating
CVD
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Mounting Style
Screw-On
Cutting Direction
Neutral
Hardened (H) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
ANSI Code
TBGE521B
Measurement System
Fractional Inch
Cutting Application
Turning
Cutting Material Coverage
Full Tip
Finish - Machining
Bright (Uncoated)
Manufacturer Grade
BN2000
Primary Material Application ISO Code
H10 - H20
Material - Machining
CBN
Included Angle
60 Degrees
Clearance Angle
5 Degrees
Features
Fracture Resistant, Wear Resistant
Insert Holding Type
No Screw Hole
Shape
Triangle
Primary Material Application
Hardened Steel
Material
CBN

Description

Triangle Turning Insert, Inscribed Circle 5/8 in, Bright (Uncoated)
