  11. Triangle Turning Insert, Triangle, 5/8 in, TBGT, 0.0156 in, Carbide

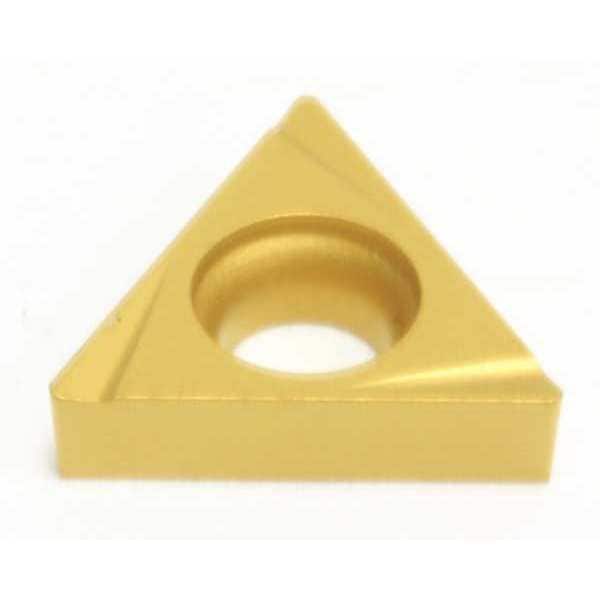

Sumitomo Triangle Turning Insert, Triangle, 5/8 in, TBGT, 0.0156 in, Carbide TBGT521L-AC8025P - main

Triangle Turning Insert, Triangle, 5/8 in, TBGT, 0.0156 in, Carbide

  • Mfr # TBGT521L-AC8025P

  • Zoro # G6315657

product price: $15.29
/ea
Sold in multiples of 10 for $152.90

Key Features

Insert Shape
Triangle
Insert Style
TBGT
Inscribed Circle
5/8 in
Insert Size
521
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBGT521L-AC8025P
Zoro #
G6315657
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
521
Corner Radius
0.0156 in
Mounting Hole Dia.
0.090"
Nose Radius
0.0156"
Insert Thickness
0.0625"
Thickness
0.125 in
Through Hole Inside Dia.
0.09 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TBGT
Inscribed Circle
5/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
10 Degrees
ISO Number
TBGT060104L-W
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Mounting Style
Screw-On
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
No. of Edges
3
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
ANSI Number
TBGT521L-AC8025P
For Use With
Toolholders, Boring Bars
Coating
Uncoated
Insert Holding Type
Countersink Hole
Coating Process
CVD
Clearance Angle
5 Degrees
Features
Adhesion Resistant, Chipping Resistant
Material - Machining
Carbide
Manufacturer Grade
AC8025P
Shape
Triangle
Chip-Breaker Style
On One Side
Cutting Application
Turning
ANSI Code
TBGT521L
Included Angle
60 Degrees
Measurement System
Fractional Inch
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Finish - Machining
Absotech Platinum
Number of Cutting Edges
3
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 5/8 in, Absotech Platinum
