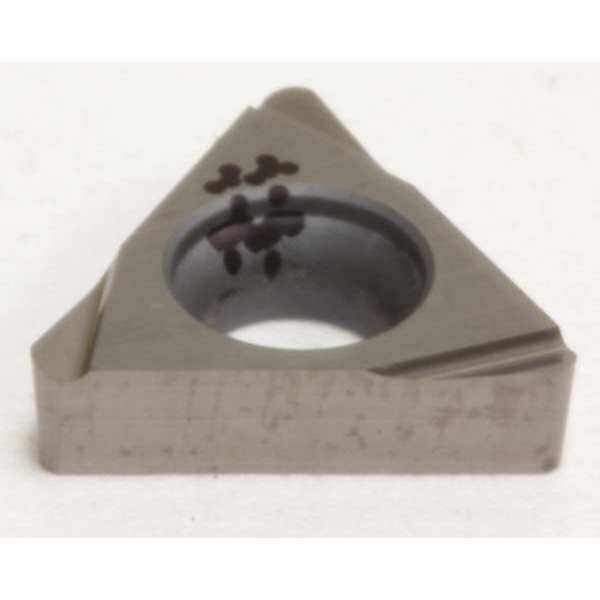

Sumitomo Triangle Turning Insert, Triangle, 5/8 in, TBGT, 0.0156 in, Cermet TBGT521LFY-T1500A - main

Triangle Turning Insert, Triangle, 5/8 in, TBGT, 0.0156 in, Cermet

  • Mfr # TBGT521LFY-T1500A

  • Zoro # G6315587

product price: $8.69
/ea
Sold in multiples of 10 for $86.90

Key Features

Insert Shape
Triangle
Insert Style
TBGT
Inscribed Circle
5/8 in
Insert Size
521
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBGT521LFY-T1500A
Zoro #
G6315587
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
521
Corner Radius
0.0156 in
Nose Radius
0.0156"
Mounting Hole Dia.
0.090"
Insert Thickness
0.0625"
Through Hole Inside Dia.
0.09 in
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TBGT
Inscribed Circle
5/8 in
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
15 Degrees
ISO Number
TBGT060104L-FX
Cutting Direction
Neutral
Hardened (H) Compatibility
No
No. of Edges
3
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Mounting Style
Screw-On
Cast Iron (K) Compatibility
No
ANSI Number
TBGT521LFY-T1500A
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Coating
Uncoated
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Measurement System
Fractional Inch
Clearance Angle
5 Degrees
Manufacturer Grade
T1500A
ANSI Code
TBGT521LFY
Features
Fracture Resistant, Wear Resistant
Material - Machining
Cermet
Primary Material Application ISO Code
M, P
Chip-Breaker Style
On One Side
Insert Holding Type
Countersink Hole
Cutting Application
Turning
Primary Material Application
Stainless Steel, Steel
Shape
Triangle
Chip-Breaker Code
FY
Included Angle
60 Degrees
Number of Cutting Edges
3
Material
Cermet

Description

Triangle Turning Insert, Chip-Breaker Code FY, Inscribed Circle 5/8 in
