  11. Turning Insert, Diamond, 0.375 in., CCMA, 2, Carbide

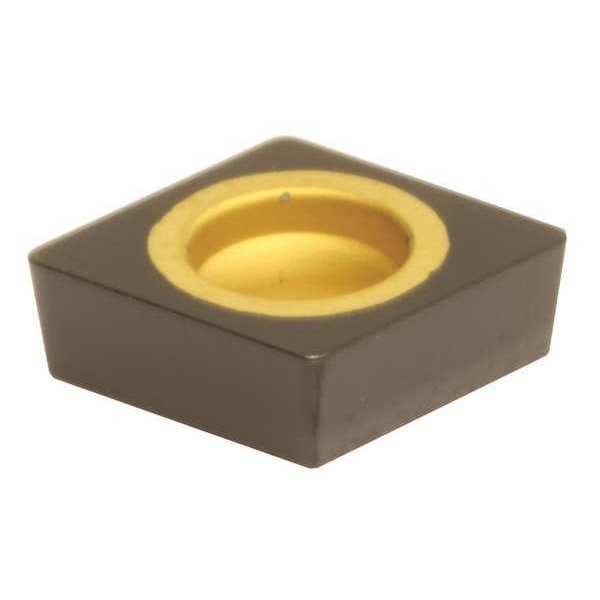

Sumitomo Turning Insert, Diamond, 0.375 in., CCMA, 2, Carbide CCMA32.52-AC420K - main

Turning Insert, Diamond, 0.375 in., CCMA, 2, Carbide

  • Mfr # CCMA32.52-AC420K

  • Zoro # G6332971

product price: $9.79
/ea
Sold in multiples of 10 for $97.90

Key Features

Insert Shape
Diamond
Insert Style
CCMA
Inscribed Circle
0.375 in.
Insert Size
32.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMA32.52-AC420K
Zoro #
G6332971
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.52
Corner Radius
2
Mounting Hole Dia.
0.173"
Nose Radius
0.0156"
Insert Thickness
0.1560"
Thickness
2.5

Details

Item
Turning Insert
Insert Shape
Diamond
Insert Style
CCMA
Inscribed Circle
0.375 in.
Chip-Breaker
Yes
Grade
K20, K15, K15
Insert Material
Carbide
Insert Application
Roughing
Rake
0 Degrees
ISO Number
CCMW09T308
Workpiece Compatibility
Cast Iron (K)
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
Mounting Style
Screw-On
No. of Edges
4
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
Coating
PCD
Steel (P) Compatibility
No
ANSI Number
CCMA32.52-AC420K
Relief Angle
7
Insert Holding Type
Straight Hole
Primary Material Application
Cast Iron
Manufacturer Grade
AC420K
Included Angle
80 Degrees
Cutting Application
Turning
Finish - Machining
Al203+TiCN
ANSI Code
CCMA32.52
Material - Machining
Carbide
Clearance Angle
7 Degrees
Primary Material Application ISO Code
K10 - K20
Measurement System
Fractional Inch
Chip-Breaker Style
Single
Coating Process
CVD
Shape
Rhombic
Number of Cutting Edges
4
Material
Carbide
Style
CCMA
Application
Roughing
Series
AC420K
Corner Angle
80

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code CCMA32.52, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
