  11. Turning Insert, Diamond, 0.375 in., CCMT, 1, Carbide

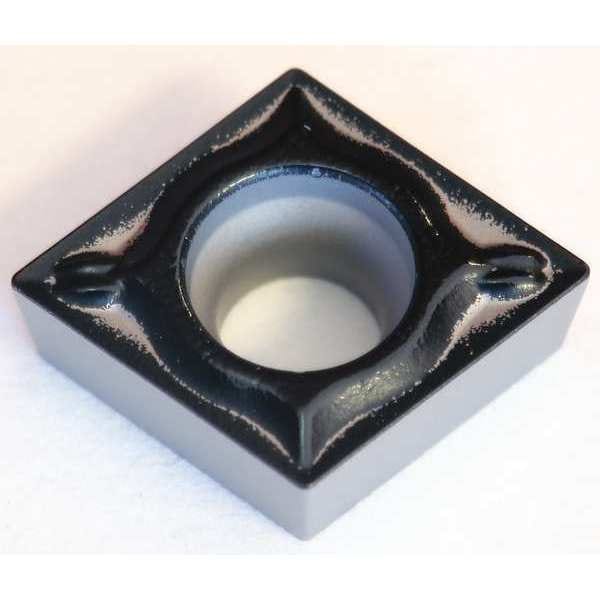

Sumitomo Turning Insert, Diamond, 0.375 in., CCMT, 1, Carbide CCMT32.51ESU-AC6030M - main

Turning Insert, Diamond, 0.375 in., CCMT, 1, Carbide

  • Mfr # CCMT32.51ESU-AC6030M

  • Zoro # G6332131

product price: $9.95
/ea
Sold in multiples of 10 for $99.50

Key Features

Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
0.375 in.
Insert Size
32.51
Chip-Breaker
ESU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMT32.51ESU-AC6030M
Zoro #
G6332131
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.51
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1560"
Mounting Hole Dia.
0.173"
Thickness
2.5

Details

Item
Turning Insert
Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
0.375 in.
Chip-Breaker
ESU
Grade
M30, M35, M25
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
CCMT09T304N-SU
Cast Iron (K) Compatibility
No
Steel (P) Compatibility
No
For Use With
Toolholders, Boring Bars
Mounting Style
Top and Hole Clamping
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Stainless (M)
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
No. of Edges
4
Coating
CVD
ANSI Number
CCMT32.51ESU-AC6030M
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Relief Angle
7
Manufacturer Grade
AC6030M
Chip-Breaker Code
ESU
Measurement System
Fractional Inch
Chip-Breaker Style
Single
Included Angle
80 Degrees
Shape
Rhombic
Cutting Application
Turning
Material - Machining
Carbide
Clearance Angle
7 Degrees
ANSI Code
CCMT32.51ESU
Insert Holding Type
Countersink Hole
Coating Process
CVD
Features
Fracture Resistant
Finish - Machining
Absotech
Primary Material Application ISO Code
M
Number of Cutting Edges
4
Primary Material Application
Stainless Steel
Material
Carbide
Style
CCMT
Application
Finishing
Chip Breaker
ESU
Corner Angle
80
Series
AC6000M

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, Absotech, ANSI Code CCMT32.51ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
