  11. Turning Insert, Diamond, 0.5 in., CNMG, 1, Carbide

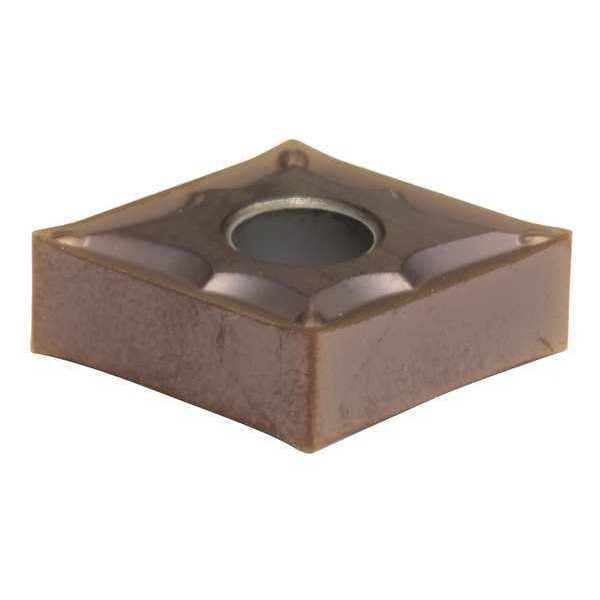

Sumitomo Turning Insert, Diamond, 0.5 in., CNMG, 1, Carbide CNMG431ESU-AC6040M - main

Turning Insert, Diamond, 0.5 in., CNMG, 1, Carbide

  • Mfr # CNMG431ESU-AC6040M

  • Zoro # G6330768

product price: $11.35
/ea
Sold in multiples of 10 for $113.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
0.5 in.
Insert Size
431
Chip-Breaker
ESU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG431ESU-AC6040M
Zoro #
G6330768
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0156"
Thickness
3

Details

Item
Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
0.5 in.
Chip-Breaker
ESU
Grade
M40, M30, M30
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
CNMG120404NSU
Coating
CVD
Non Ferrous (N) Compatibility
No
Mounting Style
Top and Hole Clamping
Steel (P) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M)
Cutting Direction
Neutral
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
No. of Edges
4
Hardened (H) Compatibility
No
ANSI Number
CNMG431ESU-AC6040M
For Use With
Toolholders, Boring Bars
Relief Angle
0
Primary Material Application
Stainless Steel
Insert Holding Type
Straight Hole
ANSI Code
CNMG431ESU
Cutting Application
Turning
Included Angle
80 Degrees
Features
Excellent Fracture Resistance
Chip-Breaker Style
Double
Material - Machining
Carbide
Chip-Breaker Code
ESU
Manufacturer Grade
AC6040M
Number of Cutting Edges
4
Primary Material Application ISO Code
M
Shape
Rhombic
Measurement System
Fractional Inch
Coating Process
PVD
Clearance Angle
0 Degrees
Finish - Machining
TiAlN+AlCrN
Material
Carbide
Application
Finishing
Style
CNMG
Corner Angle
80
Chip Breaker
ESU
Series
AC6000M

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, TiAlN+AlCrN, ANSI Code CNMG431ESU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
