  11. Turning Insert, Diamond, 0.5 in., DNMG, 2, Carbide

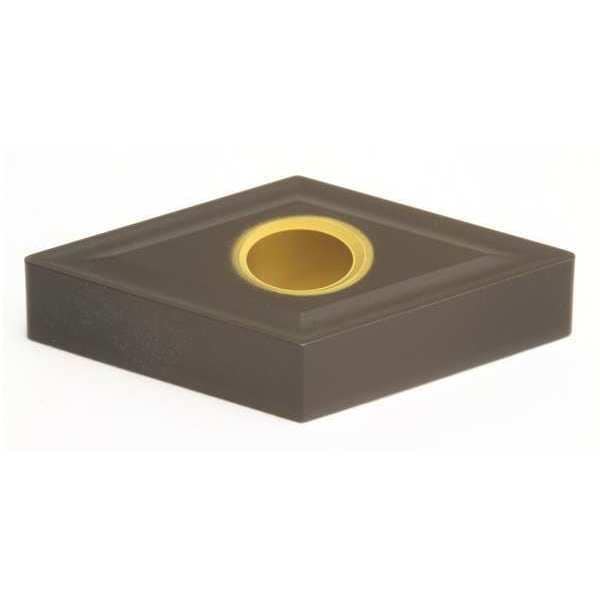

Sumitomo Turning Insert, Diamond, 0.5 in., DNMG, 2, Carbide DNMG432ENZ-AC420K - main

Turning Insert, Diamond, 0.5 in., DNMG, 2, Carbide

  • Mfr # DNMG432ENZ-AC420K

  • Zoro # G6321817

product price: $16.39
/ea
Sold in multiples of 10 for $163.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
0.5 in.
Insert Size
432
Chip-Breaker
ENZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432ENZ-AC420K
Zoro #
G6321817
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0313"
Thickness
3

Details

Item
Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
0.5 in.
Chip-Breaker
ENZ
Grade
K20, K15, K15
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
DNMG150408N-UZ
Mounting Style
Top and Hole Clamping
Coating
Cermet
Non Ferrous (N) Compatibility
No
No. of Edges
2
Stainless (M) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
ANSI Number
DNMG432ENZ-AC420K
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Relief Angle
0
Cutting Application
Turning
Included Angle
55 Degrees
Coating Process
CVD
Insert Holding Type
Straight Hole
Manufacturer Grade
AC420K
Finish - Machining
Al203+TiCN
ANSI Code
DNMG432ENZ
Primary Material Application
Cast Iron
Chip-Breaker Style
Double
Number of Cutting Edges
2
Measurement System
Fractional Inch
Shape
Rhombic
Material - Machining
Carbide
Chip-Breaker Code
ENZ
Primary Material Application ISO Code
K10 - K20
Clearance Angle
0 Degrees
Material
Carbide
Application
Roughing
Style
DNMG
Chip Breaker
ENZ
Corner Angle
55
Series
AC420K

Description

Diamond Turning Insert, Chip-Breaker Code ENZ, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG432ENZ, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
