  11. Turning Insert, Trigon, 0.375 in., WNMG, 1, Carbide

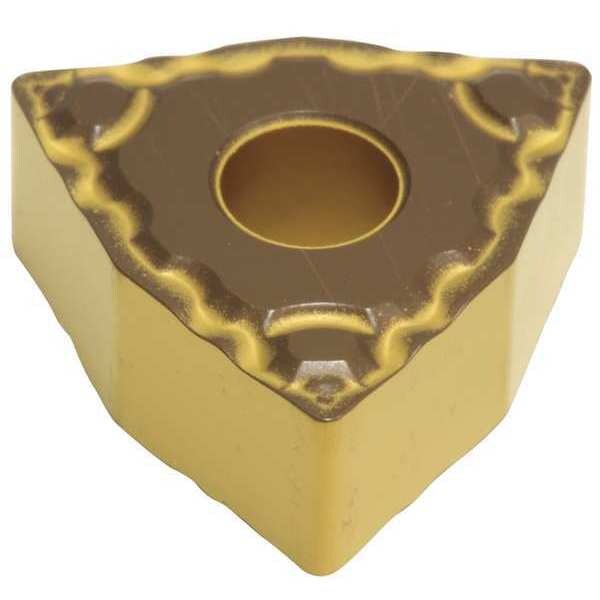

Sumitomo Turning Insert, Trigon, 0.375 in., WNMG, 1, Carbide WNMG331ELUW-AC6030M - main

Turning Insert, Trigon, 0.375 in., WNMG, 1, Carbide

  • Mfr # WNMG331ELUW-AC6030M

  • Zoro # G6378620

product price: $9.25
/ea
Sold in multiples of 10 for $92.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
0.375 in.
Insert Size
331
Chip-Breaker
ELUW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG331ELUW-AC6030M
Zoro #
G6378620
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Nose Radius
0.0156"
Thickness
3
Through Hole Inside Dia.
0.1500 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
0.375 in.
Chip-Breaker
ELUW
Grade
M30, M35, M25
Insert Material
Carbide
Insert Application
Finishing
Rake
10 Degrees
ISO Number
WNMG060404NLUW
Cast Iron (K) Compatibility
No
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Stainless (M)
No. of Edges
3
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
ANSI Number
WNMG331ELUW-AC6030M
Coating
CVD
Mounting Style
Screw-On
Non Ferrous (N) Compatibility
No
Relief Angle
0
Included Angle
80 Degrees
Material - Machining
Carbide
ANSI Code
WNMG331ELUW
Wiper Insert
Yes
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Chip-Breaker Style
Double Sided
Primary Material Application ISO Code
M
Manufacturer Grade
AC6030M
Coating Process
CVD
Features
Fracture Resistant, Wear Resistant
Primary Material Application
Stainless Steel
Cutting Application
Turning
Shape
Trigon
Measurement System
Fractional Inch
Chip-Breaker Code
ELU
Finish - Machining
Absotech
Material
Carbide
Series
AC6000M
Corner Angle
80
Chip Breaker
ELUW

Description

Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, Absotech
