  11. Turning Insert, Trigon, 0.5 in., WNMG, 3, Carbide

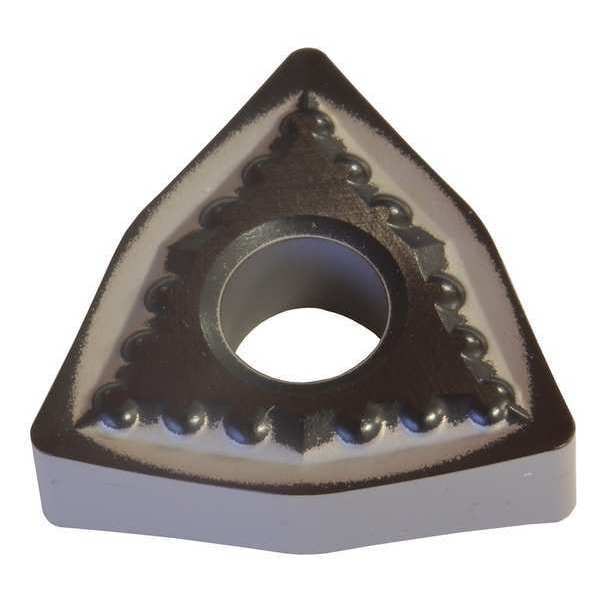

Sumitomo Turning Insert, Trigon, 0.5 in., WNMG, 3, Carbide WNMG433EUP-AC6030M - main

Turning Insert, Trigon, 0.5 in., WNMG, 3, Carbide

  • Mfr # WNMG433EUP-AC6030M

  • Zoro # G6375708

product price: $10.65
/ea
Sold in multiples of 10 for $106.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
0.5 in.
Insert Size
433
Chip-Breaker
EUP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG433EUP-AC6030M
Zoro #
G6375708
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0469"
Through Hole Inside Dia.
0.2031 in
Thickness
3

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
0.5 in.
Chip-Breaker
EUP
Grade
M30, M35, M30
Insert Material
Carbide
Insert Application
Medium
Rake
10 Degrees
ISO Number
WNMG080412N-UP
Super Alloy (S) Compatibility
No
Mounting Style
Top and hole Clamping
Steel (P) Compatibility
No
Workpiece Compatibility
Stainless (M)
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
No. of Edges
3
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
ANSI Number
WNMG433EUP-AC6030M
Coating
Uncoated
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Relief Angle
0
Coating Process
CVD
Cutting Application
Turning
Primary Material Application
Stainless Steel
ANSI Code
WNMG433EUP
Features
Fracture Resistant, Wear Resistant
Shape
Trigon
Material - Machining
Carbide
Chip-Breaker Style
Double Sided
Insert Holding Type
Straight Hole
Manufacturer Grade
AC6030M
Measurement System
Fractional Inch
Primary Material Application ISO Code
M
Included Angle
80 Degrees
Finish - Machining
Absotech
Chip-Breaker Code
EUP
Clearance Angle
0 Degrees
Material
Carbide
Corner Angle
80
Chip Breaker
EUP
Series
AC6000M

Description

Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 1/2 in, Absotech
