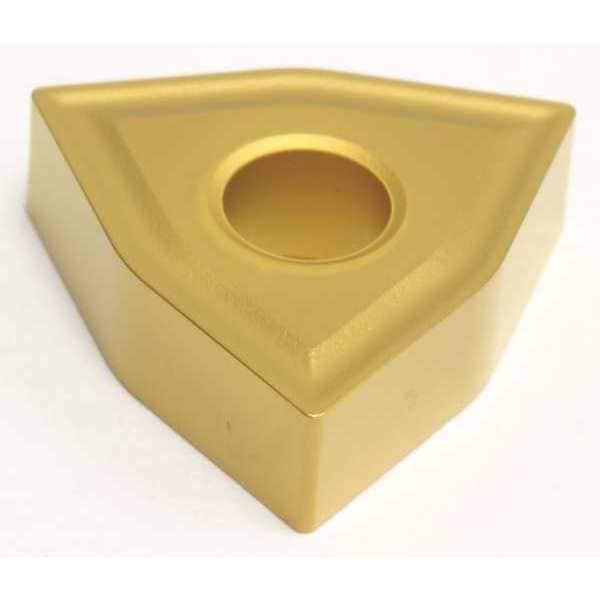

Sumitomo Turning Insert, Trigon, 4, WNMG, 3, Carbide WNMG433ENZ-AC830P - main

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433ENZ-AC830P

  • Zoro # G6375890

product price: $10.59
/ea
Sold in multiples of 10 for $105.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG433ENZ-AC830P
Zoro #
G6375890
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Roughing
Rake
4 Degrees
ISO Number
WNMG080412N-UZ
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Coating
CVD
ANSI Number
WNMG433ENZ-AC830P
Super Alloy (S) Compatibility
No
Mounting Style
Top and hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
No. of Edges
3
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Finish - Machining
Al203+TiCN
Coating Process
CVD
Chip-Breaker Style
Double Sided
Chip-Breaker Code
ENZ
Primary Material Application
Steel
Shape
Trigon
Cutting Application
Turning
Clearance Angle
0 Degrees
Material - Machining
Carbide
ANSI Code
WNMG433ENZ
Included Angle
80 Degrees
Manufacturer Grade
AC830P
Features
Fracture Resistant, Wear Resistant
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
P
Material
Carbide

Description

Turning Insert, Chip-Breaker Code ENZ, Inscribed Circle 1/2 in, Al203+TiCN
