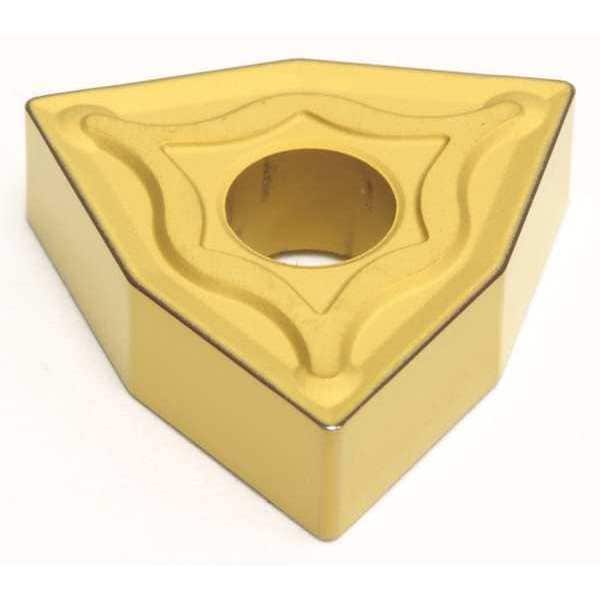

Sumitomo Turning Insert, Trigon, 4, WNMG, 3, Carbide WNMG433EUX-AC810P - main

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433EUX-AC810P

  • Zoro # G6375665

product price: $9.95
/ea
Sold in multiples of 10 for $99.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WNMG433EUX-AC810P
Zoro #
G6375665
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0469"
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Medium
Rake
0 Degrees
ISO Number
WNMG080412N-UX
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Mounting Style
Top and hole Clamping
Steel (P) Compatibility
Yes
Coating
Uncoated
Hardened (H) Compatibility
No
No. of Edges
3
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
ANSI Number
WNMG433EUX-AC810P
Measurement System
Fractional Inch
Chip-Breaker Code
EUX
Clearance Angle
0 Degrees
Features
Excellent Wear Resistance
Included Angle
80 Degrees
Cutting Application
Turning
ANSI Code
WNMG433EUX
Material - Machining
Carbide
Manufacturer Grade
AC810P
Chip-Breaker Style
Double Sided
Shape
Trigon
Insert Holding Type
Straight Hole
Coating Process
CVD
Primary Material Application ISO Code
P
Primary Material Application
Steel
Finish - Machining
Al203+TiCN
Material
Carbide

Description

Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 1/2 in, Al203+TiCN
