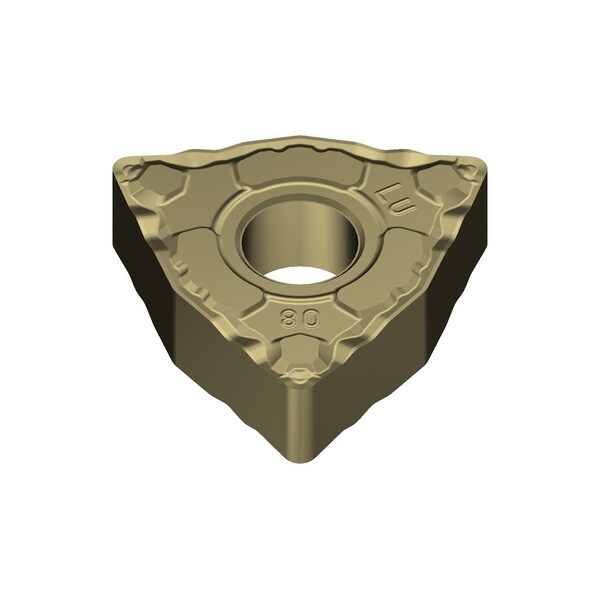

WNMG433ELU Grade AC8020P Carbide Turning Insert
Mfr # 19W1BUE
Zoro # G108977607
product price:Â $17.69
/ea
Sold in multiples of 10 for $176.90
Key Features
Insert Style
WNMG
Inscribed Circle
1/2 in
Insert Size
0.3425 in
Chip-Breaker
Yes
Grade
AC8020P
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
19W1BUE
Zoro #
G108977607
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
0.3425 in
Nose Radius
0.0472 in
Mounting Hole Dia.
5.16 mm
Insert Thickness
0.1874 in
Details
Item
Turning Insert
Insert Style
WNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
AC8020P
Insert Material
Carbide
Rake
Negative
ISO Number
WNMG080412N-LU
ANSI Number
WNMG433ELU-AC8020P
Coating
Absotech
Tolerance Class
M
Included Angle
80 Degrees
Mounting Style
Pin and Clamp
Series
AC8000P
Coating Process
CVD
Material Application ISO Code
P20
Relief Angle
0 Degrees
Workpiece Compatibility
Steel
