  13. Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Screw

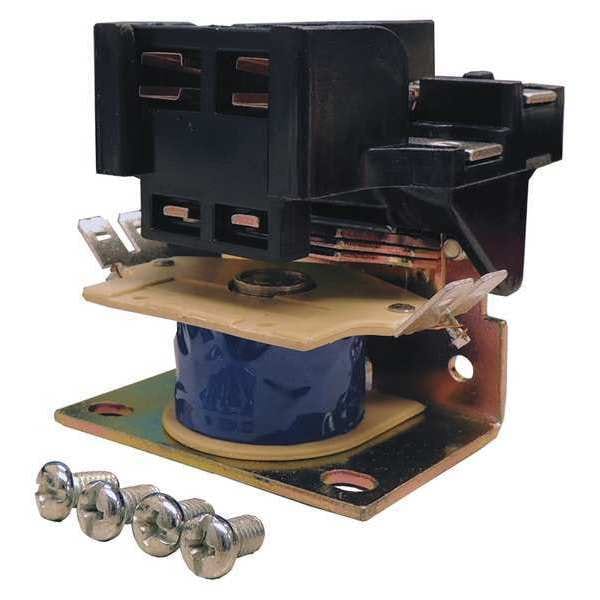

Supco Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Screw SMC11 - main

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Screw

  • Mfr # SMC11

  • Zoro # G0749563

product price: $37.28
/ea

Key Features

Coil Voltage
24V AC
Series
SMC11
Number of Poles
2
Reversing Capability
Non-Reversing
Full Load Current - Resistive
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMC11
Zoro #
G0749563
UPC #
687152182497
Country of Origin
China

Dimensions

Overall Height
3 in
Overall Width
3 in
Overall Depth
3 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
24V AC
Series
SMC11
Number of Poles
2
Reversing Capability
Non-Reversing
Full Load Current - Resistive
30 A
Full Load Current - Inductive
30 A
Phase
1
Terminal Connection Type
Screw
Includes
(4) Screws, (4) Terminals
Standards
UL E328772
Horsepower @ Single Phase - 120V AC
Not Rated
Maximum Voltage Rating
24V AC
Frequency
50/60 Hz
Number of Terminals
4
Horsepower @ Single Phase - 240V AC
Not Rated
NEMA Enclosure Rating
No Enclosure
Number of Normally Closed Main Contacts
0
Locked Rotor Load
120 A
Horsepower @ Three Phase - 600V AC
Not Rated
Horsepower @ Three Phase - 208V AC
Not Rated
Number of Normally Open Main Contacts
2
Horsepower @ Three Phase - 240V AC
Not Rated
Input Control Type
2-Wire
Horsepower @ Three Phase - 480V AC
Not Rated

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series SMC11 Series, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC Not Rated, Horsepower @ Single Phase - 120V AC Not Rated, Full Load Current - Resistive 30 A
