  9. Press Switch, Range 375-265 PSIG
Shop All Single Pressure Controls
Supco

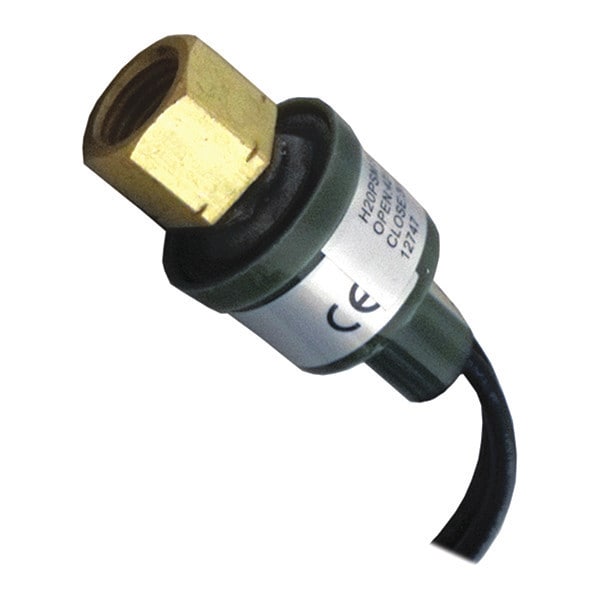

Press Switch, Range 375-265 PSIG

product price: $10.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Type SPST
  • Switch Action Open on Rise
  • Pressure Connection 1/4 in Female SAE
  • Range (PSI) 0-650
  • Close (PSI) 265
See all product information

Product Information

Dimensions

Pressure Connection Size 1/4 in
Overall Depth 21 mm
Overall Width 21 mm
Overall Height 41 1/2 mm

Details

Item High Pressure Switch
Switch Type SPST
Switch Action Open on Rise
Pressure Connection 1/4 in Female SAE
Range (PSI) 0-650
Close (PSI) 265
Open (PSI) 375 psi
Differential Pressure (PSI) +/-15
Mounting Direct
Pressure Type Positive
Output Current 5.8 A
Minimum Operating Temperature -31 Degrees F
Valve Type Open on Rise of Inlet Pressure
Contact Form SPST
Pressure Range Adjustability Fixed
Product Type High Pressure Control
Weight 0.15 lb
IP Rating Not Rated
Rated Voltage 120/240VAC
Series SHP Series
Body Color Green
Pressure Connection Material Stainless Steel
Body Material Stainless Steel
Pressure Connection Gender Female
Pressure Connection Type Flare
Element Material Stainless Steel
Electrical Connection Type Hardwired
Element Type Diaphragm
Joint Type Hermetic Construction
Standards CE Listed, UL Recognized
Heat Pump Override No Override
Pressure Differential Adjustability Fixed
Reset Type Automatic Reset
Maximum Operating Temperature 149 Degrees F
Control Type High Cutout
Pressure Range - Maximum 700 psi
Number of Inputs Pressure Sensor (1)
Pressure Setting High
NEMA Rating Not Rated
Mounting Orientation Any Position
Includes Strainer Strainer Not Included
Frequency 50/60 Hz

Description

High Pressure Switch, Product Type High Pressure Control, Pressure Range - Maximum 700 psi, Pressure Differential - Minimum Not Applicable, Pressure Range - Minimum Not Applicable, Pressure Differential Max. Not Applicable, Pressure Differential Adjustability Fixed, Pressure Range Adjustability Fixed, Pressure Connection Gender Female, Pressure Connection Type Flare, Time Delay Setting Not Applicable, Pressure Setting High, Pressure Connection Size 1/4 in, Rated Voltage 120/240VAC
