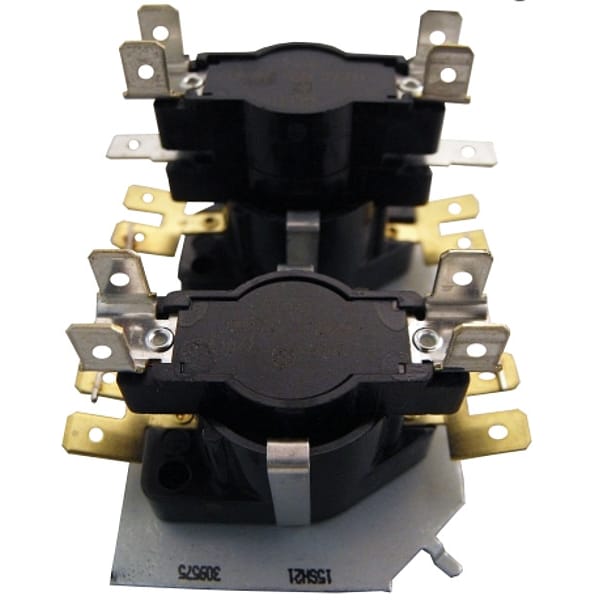

Supco Sequencer, Number of Switches 3, 1-110 Sec Q105 - main

Sequencer, Number of Switches 3, 1-110 Sec

  • Mfr # Q105

  • Zoro # G2431764

product price: $24.19
/ea

Key Features

Width (In.)
3 1/4 in
Aux. Switch Off Time (Sec.)
1 to 110
Resistive Amps @ 120V
25 A
Locked Rotor Amps @ 120V
72 A
Number of Switches
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Q105
Zoro #
G2431764
UPC #
687152023714
Country of Origin
China

Dimensions

Width (In.)
3 1/4 in
Height (In.)
1 7/8 in
Depth (In.)
2 in
Overall Depth
2 in
Overall Length
1 7/8 in
Overall Width
3 1/4 in

Details

Aux. Switch Off Time (Sec.)
1 to 110
Resistive Amps @ 120V
25 A
Locked Rotor Amps @ 120V
72 A
Number of Switches
3
Item
Electric Sequencer
Locked Rotor Amps @ 480V
18 A
Includes
Double Quick-Connect Terminals For Combination Loads
Full Load Amps @ 120VAC
14 A
Pilot Duty 120/480V (VA)
125 VA
Main Switch Off Time (Sec.)
1 to 110
On Time (Seconds)
1 to 110
Aux. Switch On Time (Sec.)
1 to 110
Full Load Amps @ 240VAC
7 A
Locked Rotor Amps @ 240V
42 A
Main Switch On Time (Sec.)
1 to 110
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Off Time (Seconds)
1 to 110
Full Load Amps @ 480V
3 A
Resistive Amps @ 480V
12.5 A
Control Volts
24 V
Number of Timings
2
Resistive Amps @ 240V
25 A
Therm-o-Disc Model No.
15SH21309575
Operating Temperature - Maximum
165 Degrees F
Locked Rotor Current @ 240V AC
42 A
Main Switch Off Minimum
1 sec
Main Switch On Minimum
1 sec
Standards
CSA, UL Listed
Resistive Load Current @ 120V AC
25 A
Main Switch Off Maximum
110 sec
Voltage
24V AC
Resistive Load Current @ 240V AC
25 A
Main Switch On Maximum
110 sec
Auxiliary Switch Off Minimum
1 sec
Locked Rotor Current @ 120V AC
72 A
Full Load Current @ 240V AC
7 A
Auxiliary Switch On Minimum
1 sec
Operating Temperature - Minimum
-50 Degrees F
Pilot Duty @ 120V AC
125 VA
Auxiliary Switch On Maximum
110 sec
Pilot Duty @ 240V AC
125 VA
Full Load Current @ 120V AC
14 A
Application
Electric Furnaces, Gas Furnaces, Heat Pumps, Oil Furnaces
Auxiliary Switch Off Maximum
110 sec

Description

Electric Sequencer, Application Electric Furnaces, Gas Furnaces, Heat Pumps, Oil Furnaces, Auxiliary Switch Off Maximum 110 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 110 sec, Auxiliary Switch On Minimum 1 sec, Full Load Current @ 120V AC 14 A, Full Load Current @ 240V AC 7 A, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A, Main Switch Off Maximum 110 sec, Main Switch Off Minimum 1 sec, Main Switch On Maximum 110 sec
