  11. Snap Disc Control, 1-1/2" D, 2" W, 1" H
Shop All Fan and Limit Controls
Supco

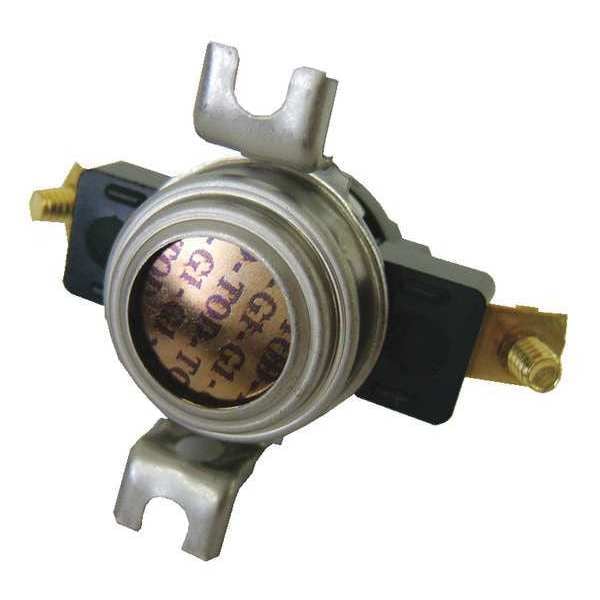

Snap Disc Control, 1-1/2" D, 2" W, 1" H

product price: $11.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) 110 to 130
  • Type Limit, Safety
  • Switch Type SPST
  • Depth (In.) 1 1/2 in
  • Width (In.) 2 in
See all product information

Product Information

Dimensions

Depth (In.) 1 1/2 in
Width (In.) 2 in
Height (In.) 1 in
Overall Depth 1 1/2 in
Mounting Base Width 1 5/8 in
Mounting Base Length 2 in
Terminal Size 1/4 in
Overall Height 1 in
Overall Width 2 in

Details

Item Temperature Limit Controller
Temp. Range (F) 110 to 130
Type Limit, Safety
Switch Type SPST
Switch Opens @ (F) 130 Degrees F
Voltage Range 120 to 240
Resistive Amps @ 120V 25 A
Resistive Rating 240V 25
Pilot Duty Contacts (VA) 125 VA
Element Type Insertion
Fan On Temp. (F) 130 Degrees F
Inductive Amps @ 120V 14 A
Inductive Amps @ 240V 10 A
Switch Action Open on Rise
Resistive Rating Circuit #1 @120/240V 25
Circuit #1 Switch Opens @ (F) 130 Degrees F
Circuit No. 1-Inductive 240V 10
Circuit No. 1-Inductive 120V 14
Product Type Temperature Limit Controller
Reset Type Manual Reset
Resistive Amps @ 240V AC 25 A
Maximum Control Temperature 130 Degrees F
Contact Form DPDT
Resistive Amps @ 120V AC 25 A
Input Voltage 120V AC, 240V AC
Wire Connections Quick Connect
Switch Opening Temperature 130 Degrees F
Contact Rating (AC) 10A @ 240V AC (Inductive), 14 A @ 120V AC, 25 A @ 120V AC, 25 A @ 240V AC (Resistive)
Pilot Contact Rating 125 VA
Application Limit Control
Mounting Surface Mount
Minimum Control Temperature 110 Degrees F

Description

Temperature Limit Controller, Application Limit Control, Mounting Surface Mount, Contact Form DPDT, Switch Action Open on Rise, Reset Type Manual Reset, Switch Closing Temperature Not Applicable, Switch Opening Temperature 130 Degrees F, Input Voltage 120V AC, 240V AC, Maximum Control Temperature 130 Degrees F, Minimum Control Temperature 110 Degrees F, Mounting Base Length 2 in, Mounting Base Width 1 5/8 in, Product Type Temperature Limit Controller, Overall Depth 1 1/2 in, Overall Height 1 in
