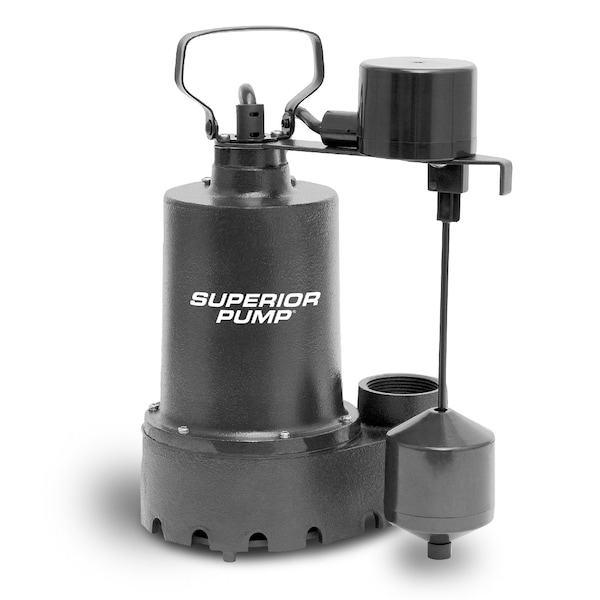

1/2 HP, Cast Iron Submersible Sump Pump, with Piggy-Back Vertical Float Switch

  • Mfr # 92541

  • Zoro # G109989401


product price: $133.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2 in NPT
Housing Material
Cast Iron
HP
1/2 HP
Impeller Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
92541
Zoro #
G109989401
UPC #
725113925414
Country of Origin
China

Dimensions

Cord Length
10 ft
Max. Diameter Solids
3/8"

Details

Discharge NPT
1-1/2 in NPT
Housing Material
Cast Iron
HP
1/2 HP
Impeller Material
Stainless Steel
Motor Type
PSC Motor
Voltage
120 V
Max. Liquid Temp.
120° F
On Point
6 in
Off Point
2 in
Amps
4.9 A
Switch Type
Piggy-Back Vertical Float Switch
Pump Body Material
Cast Iron
Standards
cCSAus; cULus
Discharge Type
Side
GPH 0'
3300
GPH 15'
1740
Flow Rate @ 0 Ft. of Head
3300 GPH
Impeller Design
Non-Clogging Vortex Impeller
Power Source
AC Electric
Solids Handling
3/8 in
Max. Pressure
10.8 PSI
Discharge Location
Side

Description

This 1/2 HP heavy-duty submersible sump pump is built to last and designed for basement dewatering applications. It offers a maximum discharge flow rate of 3300 GPH at 0 feet of vertical lift and 2400 GPH at 10 feet. The pump is constructed from epoxy-coated cast iron and features an efficient, thermally protected continuous duty PSC motor with premium, 100% solid copper windings and dual O-ring motor seals for enhanced longevity.


  • Maximum discharge flow rate 3300 GPH @ 0 ft. of vertical lift; 2400 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25-ft.).
  • Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.
  • This fully submersible sump pump features a bottom suction design and a thermoplastic non-clogging impeller. It efficiently removes water down to 3/4 inch of surface level (without switch installed) and can handle solids up to 3/8 inch in size to reduce the risk of clogging. The reliable piggy-back vertical float switch allows you to operate the pump manually or automatically, turning on at 6 inches and off at 2 inches (factory settings).
  • Superior Pumps are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 3 year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.
  • Rugged expoxy-coated cast iron, sealed construction for long life. Heavy duty, strong and easily portable.
  • Reliable groundwater removal to prevent residential flooding.
  • The length you need for safe and convenient installation to the nearest GFCI outlet.
  • 1-1/4 in. NPT Discharge with 1-1/2 in. NPT adapter for high volume water removal and code compliance.
  • Engineered for high volume water removal, wherever you need it. Designed with a piggy-back style switch for easy bypass to run manually as a multi-purpose pump.
