1/3 HP, Durable Fiberglass Reinforced Thermoplastic, Submersible Sump Pump, with Piggy-Back Tether Float Switch
Mfr # 92330
Zoro # G304258326
Key Features
Specifications
Product Information
- MFR #
- 92330
- Zoro #
- G304258326
- UPC #
- 725113923304
- Country of Origin
- China
Dimensions
- Cord Length
- 10 Ft. Piggy-Back Power Cord
- Max. Dia. Solids
- 1/8 in
- Height
- 9 in
- Width
- 6 in
- Length
- 6.5 in
- Maximum Lifting Height
- 25 ft
Details
- Discharge NPT
- 1-1/4 In MNPT
- Housing Material
- Thermoplastic
- Impeller Material
- Thermoplastic
- Motor Type
- Psc Motor
- Voltage
- 120 V
- Amps
- 4.1 A
- Switch Type
- Piggy-Back Tether Float Switch
- Off Point
- 5 in
- On Point
- 10 in
- Liquid Temp Range
- 35° F - 120° F
- Discharge Location
- Top
- Maximum Flow Rate
- 2400 GPH @ 0 ft
- Maximum Psi
- 10.8 PSI
- Impeller Design
- Non-Clogging Open-Type Impeller
- Pumps Down To
- 1/2 in From Surface (Without Switch Installed)
- Adapter Included
- 1-1/4 in MNPT or 1-1/2 in MNPT
- Power Source
- Ac Electric
Description

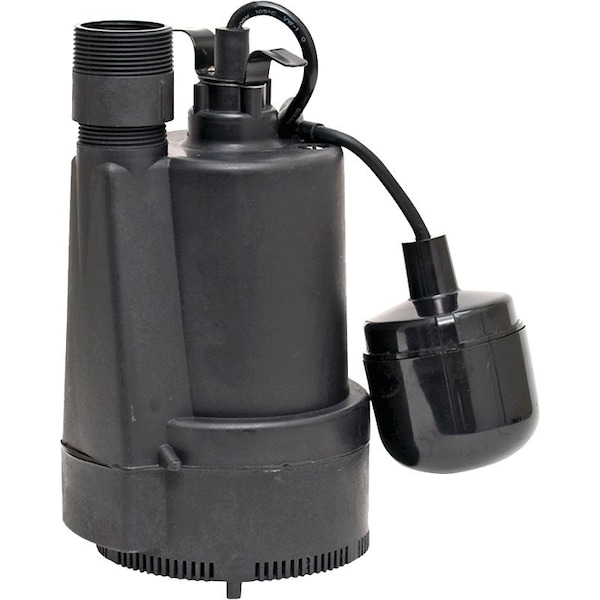

This 1/3 HP heavy-duty submersible sump pump is built to last and designed for basement dewatering applications. It offers a maximum discharge flow rate of 2400 GPH at 0 feet of vertical lift and 1,680 GPH at 10 feet. The pump is constructed from fiberglass-reinforced thermoplastic and features an efficient, thermally protected continuous duty PSC motor with premium, 100% solid copper windings and dual O-ring motor seals for enhanced longevity. Equipped with a piggy-back tether float switch, this pump allows for both automatic and manual operation. It has undergone 100% factory testing and is backed by a 1-year limited warranty. Additionally, it is UL, CSA, and SSPMA certified, ensuring exceptional quality, safety, and performance. Featuring a bottom suction design, a thermoplastic impeller, and a serviceable intake screen, this fully submersible sump pump can handle solids up to 1/8 inch, which helps minimize clogging. It includes a 10-foot power cord for easy installation, has a 1-1/4 inch NPT discharge, and comes with a 1-1/2 inch NPT adapter. Superior Pump has been a family-owned and operated business since 1932, offering reliable water pump solutions customized to meet your specific needs. Located in St. Paul, MN, our customer service experts are available seven days a week to assist you. Our water pump solutions are recognized for their quality and durability, and we take pride in every product being Engineered to Perform and Built to Last®.
- Maximum discharge flow rate 2400 GPH @ 0 ft. of vertical lift; 1680 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25-ft.).
- Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.
- This fully submersible sump pump features a bottom suction design and a thermoplastic non-clogging impeller. It efficiently removes water down to 1/2 inch of surface level and can handle solids up to 1/8 inch in size to reduce the risk of clogging. The reliable piggy-back tether float switch allows you to operate the pump manually or automatically, turning on at 10 inches and off at 5 inches (factory settings).
- Superior Pumps are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 1 year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.
- Durable fiberglass reinforced thermoplastic sealed construction for long life. Lightweight, corrosion-resistant, strong and easily portable.
- Reliable groundwater removal to prevent residential flooding.
- The length you need for safe and convenient installation to the nearest GFCI outlet.
- 1-1/4 in. NPT Discharge with 1-1/2 in. NPT adapter for high volume water removal and code compliance.
- Easy-carry, finger-grip handle designed for portability and placement, in sump pump applications.
- Engineered for high volume water removal, wherever you need it. Designed with a piggy-back style switch for easy bypass to run manually as a multi-purpose pump.
