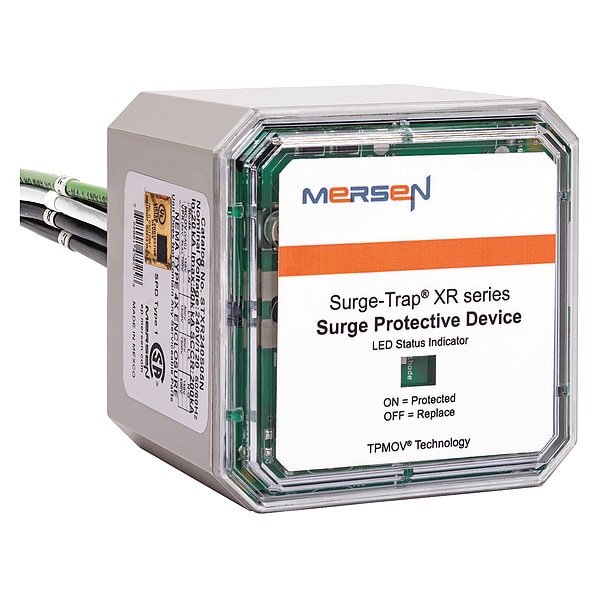

Surge Protection Device, 1 Phase, 120/240V AC

Name: Surge Protection Device, 1 Phase, 120/240V AC
Brand: Surge Trap
SKU: G5527366
Price: 231.99 USD
Availability: InStock

231.99

/ea

Free Shipping & Returns

Mounting Style

Chase Nipple/Panel

Phase

Voltage

120/240V AC

Voltage Protection Rating

1000V (H-N, L-N, N-G), 1800V (H-G, H-L, L-G, L-L)

Modes of Protection

L-G, L-L, L-N, N-G

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: STXR240S05N
Zoro #: G5527366
UPC #: 782001469894
Country of Origin: Mexico
Item: Surge Protection Device
Mounting Style: Chase Nipple/Panel
Phase: 1
Voltage: 120/240V AC
Voltage Protection Rating: 1000V (H-N, L-N, N-G), 1800V (H-G, H-L, L-G, L-L)
Modes of Protection: L-G, L-L, L-N, N-G
Max. Surge Current per Mode: 50 kA
Max. Surge Current per Phase: 50 kA
Nominal Discharge Current: 20 A
Short Circuit Current Rating: 200kA
Modular: No
Filtering: No
Max. Continuing Operating Voltage: 150/300V AC
Enclosure NEMA Rating: NEMA 4X
Enclosure Material: Polycarbonate
Wire Gauge: 10 AWG
Includes: LED
Standards: ANSI, UL Listed CSA Approved, RoHS, Type 1 or 2
Modular / Nonmodular: Nonmodular
System Connection: Parallel
Color: Gray
Min. Operating Temp.: -40 Degrees F
UL SPD Type: Type 1/2
Max. Operating Temp.: 185 Degrees F
Basic Material: Nonmetallic
Includes Surge Counter: No
Min Operating Temp: -40 Â°C
Installation Mounting: Panel Mount
Mcov L-G: 300 V
Mcov L-L: 300 V
Ac Or Dc: AC
Housing Material: Polycarbonate
Wire Connections: Pre-wired
Max Storage Temp: 85 Â°C
Max Operating Temp: 85 Â°C
Frequency Hz: 50/60 Hz
Flammability Rating: UL94-5VA
Min Storage Temp: -40 Â°C
Mcov N-G: 150 V
Protection Modes: L-G, L-N, L-L, N-G
Mcov L-N: 150 V
Max Discharge Current Imax 8 20: 50 kA per phase
System Configuration: Split Phase

Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
