This item is Discontinued.

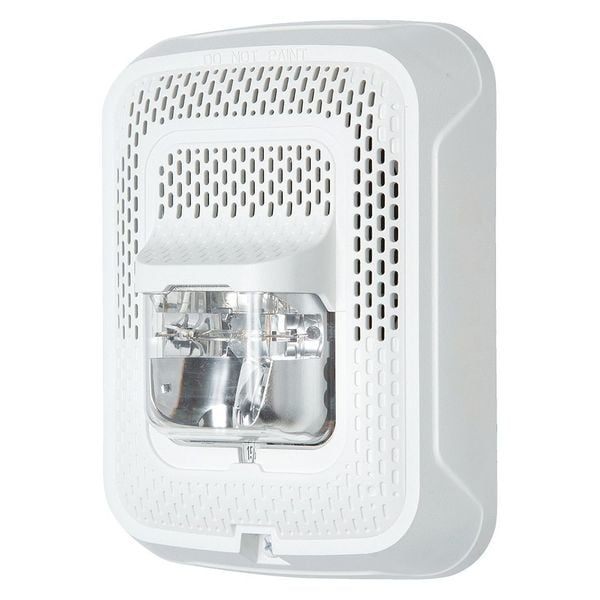

System Sensor Speaker Strobe, Speaker Strobe, White SPSWL

Speaker Strobe, Speaker Strobe, White (Discontinued)

  • Mfr # SPSWL
  • Zoro # G9913456
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPSWL
Zoro #
G9913456
UPC #
783863048333
Country of Origin
Mexico

Dimensions

Tube Length (Ft.)
1 ft
Depth
2.3"
Width
5"
Overall Width
5 in
Overall Height
6.5 in
Overall Depth
2.3 in

Details

Item
Speaker Strobe
Type
Speaker Strobe
Standards
CSFM 7320-1653:0505, FM, UL S4048, ULC S4048
Mounting
Wall
Voltage
12/24 V
Includes
Mounting Plate
Finish
White
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Humidity Range (% RH)
10 to 93% RH
Flash (Candela)
15/185 cd
Peak Output (dBA)
86 dBA
Standby State (mA)
0 mA
For Use With
Fire Alarm Panel
Alarm State (mA)
43 to 257 mA
Standby Current (uA)
0 uA
Product Type
Speaker Strobe
Application
Signaling, Indoor, Evacuation, Fire
Features
No Extension Ring Required, Plug-In Design and Protective Cover Reduce Ground Faults, Tamper-Resistant Construction, Updated Modern Aesthetics
Housing Color
White
Housing Material
Plastic
Environment
Indoor
Light Operating Mode
Strobe
Lamp Type
Xenon
Light Output
15 cd, 30 cd, 75 cd, 95 cd, 110 cd, 135 cd, 185 cd
Audible Alarm Type
Fire Alarm
Power Source
Wire
Frequency Response - Minimum
400 Hz
Sound Level
86 dBA
Visual Indicator Type
Strobe
Lens Color
Clear
Current
257 mA
Operating Temperature - Maximum
120 Degrees F
Transformer Taps @ 25V
0.25 W, 0.5 W, 1 W, 2 W
Operating Temperature - Minimum
32 Degrees F
Wattage
2 W
Connection Type
Wire Leads
Legend
FIRE
Frequency Response - Maximum
4,000 Hz
Transformer Taps @ 70V
0.25 W, 0.5 W, 1 W, 2 W

Description

Speaker Strobe, Speaker Strobe, Finish White, Wall Mounting, Alarm Current -, Peak Output (dBA) 86, Flash (Candela) 15/185, Standby Current (uA) 0, Depth (In.) 2-1/2, Height (In.) 6-1/2, Length (In.) 6-1/2, Tube Length (Ft.) 1, Width (In.) 5, Ambient Temp. Limits (F) 32 to 120 Degrees , Alarm State (mA) 43 to 257, Humidity Range ( Percent RH) 10 to 93, Standby State (mA) 0, Voltage 12 or 24 VDC, Standards UL Listed, CSFM, FM, Includes Mounting Plate, For Use With Fire Alarm Panel
