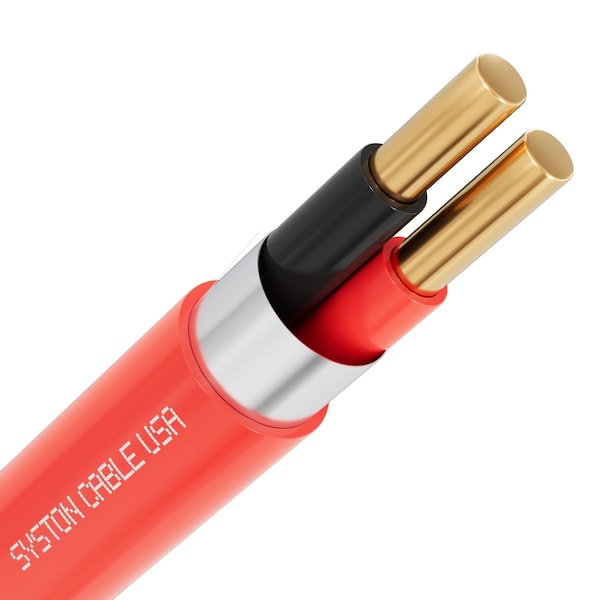

12/2 Fire Alarm Burglar Station Wire Cable, 100% Solid Copper, FPLP Unshielded, UL/ETL Listed, 100ft
Mfr # 6763-100RD
Zoro # G522806156
product price:Â $139.99
/ea
Free Shipping & Returns
Key Features
Jacket Color
Red
Jacket Material
PVC
Solid/Stranded
Solid
Standards
NEC:725 & 760, UL Standard: UL 13 & UL 1424, Flame Rating: NFPA 262 (Plenum), CSA-C22.2 No. 2556 (FT6), California State Fire Marshall, ASTM B-3 and B-8, RoHS 3 (EU 2015/863)
Outside Diameter
0.295 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
6763-100RD
Zoro #
G522806156
UPC #
-
Country of Origin
China
Dimensions
Outside Diameter
0.295 in
Cable Length
100 ft
Details
Jacket Color
Red
Jacket Material
PVC
Solid/Stranded
Solid
Standards
NEC:725 & 760, UL Standard: UL 13 & UL 1424, Flame Rating: NFPA 262 (Plenum), CSA-C22.2 No. 2556 (FT6), California State Fire Marshall, ASTM B-3 and B-8, RoHS 3 (EU 2015/863)
Temp. Range
-4 Degrees to 167 Degrees F
Series
6763
Number of Conductors
2
Conductor Material
Copper
Item
Fire Alarm Cable
Package Type
Mailer Box
Shielded / Unshielded
Unshielded
Conductor Gauge
12 AWG
Maximum Voltage Rating
300 V
Application
Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems
Fire Rating
Plenum / FPLP
Description
SYSTON CABLE TECHNOLOGY Power Limited Fire Alarm Cable 12 AWG 2 Solid Conductors Unshielded Plenum Rated - FPLP, CL3P, FT6 Applications: Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems
