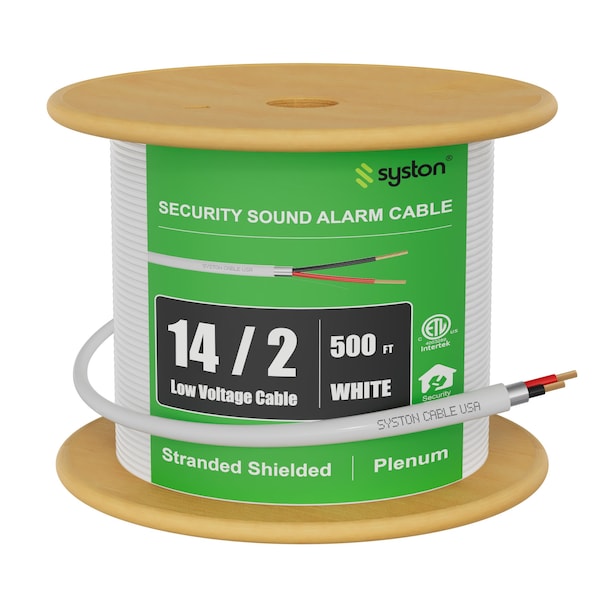

14/2 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 500 ft
Mfr # 5823-500WH
Zoro # G722806123
product price:Â $327.99
/ea
Free Shipping & Returns
Key Features
Number of Conductors
2
Wire Size
14 AWG
Conductor Design
Stranded
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Voltage
300 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5823-500WH
Zoro #
G722806123
UPC #
-
Country of Origin
China
Dimensions
Wire Size
14 AWG
Nominal Outside Dia.
0.248 in
Length
500 ft
Details
Number of Conductors
2
Conductor Design
Stranded
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Voltage
300 V
Jacket Color
White
Conductor Material
Copper
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Jacket Material
PVC
Item
Control Cable
Temp. Rating
-4 Degrees to 167 Degrees F
Description
SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 14 AWG 2 Stranded Conductors Shielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 2 (Twisted) Size: 14 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.248 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
