  6. 16/3 Fire Alarm Security Cable, 100% Stranded Copper, Plenum CMP Unshielded, Low Voltage, 1000 ft

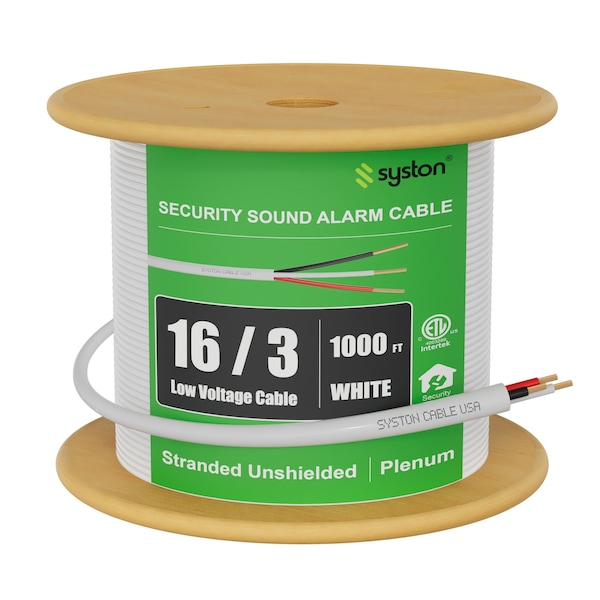

Syston Cable Technology 16/3 Fire Alarm Security Cable, 100% Stranded Copper, Plenum CMP Unshielded, Low Voltage, 1000 ft 5778-1000WH - main

16/3 Fire Alarm Security Cable, 100% Stranded Copper, Plenum CMP Unshielded, Low Voltage, 1000 ft

  • Mfr # 5778-1000WH

  • Zoro # G422806096

product price:  $605.99
/ea
Free Shipping & Returns

Key Features

Length
1000 ft
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Temp. Rating
-4 Degrees to 167 Degrees F
Nominal Outside Dia.
0.208 in
Jacket Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5778-1000WH
Zoro #
G422806096
UPC #
-
Country of Origin
China

Dimensions

Length
1000 ft
Nominal Outside Dia.
0.208 in
Wire Size
16 AWG

Details

Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Temp. Rating
-4 Degrees to 167 Degrees F
Item
Control Cable
Jacket Color
White
Conductor Material
Copper
Number of Conductors
3
Conductor Design
Stranded
Voltage
300 V
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Material
PVC

Description

SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 16 AWG 3 Stranded Conductors Unshielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 3 (Twisted) Size: 16 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.208 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
