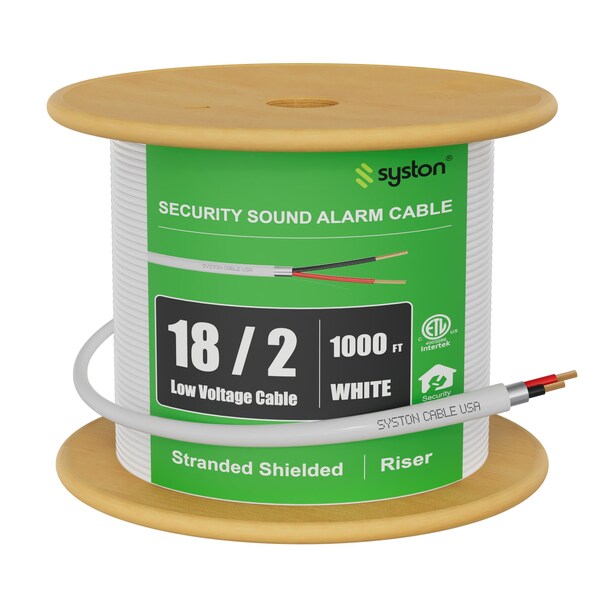

18/2 Fire Alarm Security Cable, 100% Stranded Copper, Riser CMR Shielded, Low Voltage Use, 1000 ft
Mfr # 5617-1000WH
Zoro # G621722722
product price:Â
$
266.99
/ea
Free Shipping & Returns
Key Features
Cable Length
1000 ft
Conductor Gauge
18 AWG
Fire Rating
Riser
Jacket Color
White
Jacket Material
PVC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5617-1000WH
- Zoro #
- G621722722
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Length
- 1000 ft
- Outside Diameter
- 0.189 in
- Conductor Size
- 18 AWG
Details
- Item
- Control Cable
- Conductor Gauge
- 18 AWG
- Fire Rating
- Riser
- Jacket Color
- White
- Jacket Material
- PVC
- Number of Conductors
- 2
- Shielding Material
- Aluminum Foil/Mylar
- Maximum Voltage Rating
- 300 V
- NEC Article and Type
- 800 CMR, 725 CL3R
- Standards
- CSA FT4, RoHS Compliant, UL Listed
- Temp. Range
- -4 Degrees to 167 Degrees F
- Conductor Material
- Copper
- Shielded / Unshielded
- Shielded
- Conductor Design
- Stranded
- Fire Resistance Rating
- Riser / CL3R / CMR / FT4
- Package Type
- Spool
- Style
- 18/2 CMR Shielded
- Application
- Wiring for fire alarms, security systems, communications, access control, nurse call, and other low-voltage power-limited circuits
Description
SYSTON CABLE TECHNOLOGY Security, Control, Sound & Alarm Cable 18 AWG 2 Stranded Conductors Shielded Riser Rated - CMR, CL3R, FPLR, FT4, Sun Res Conductor: Stranded Bare Copper Number of Conductors: 2 (Twisted) Size: 18 AWG Insulation: Premium Polyolefin (Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Premium PVC (Flame-Retardant, Sunlight Resistant& RoHS Compliant) Nominal Cable Diameter (in): 0.189 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
