  9. Circulating Pump, Union, 1/25hp, 120VAC
No Product Image Available

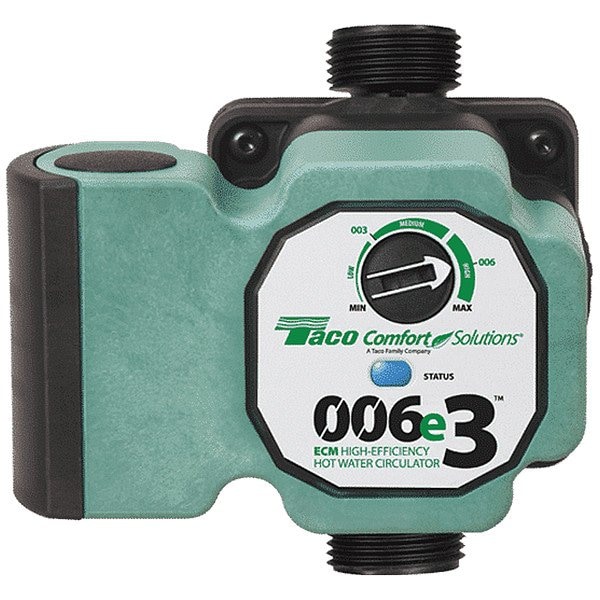

Circulating Pump, Union, 1/25hp, 120VAC

  • Mfr # VM1212-DY1-UP2A00

  • Zoro # G005128157

product price: $408.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/25 hp
Series
006E
Pump Type
Energy Efficient
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM1212-DY1-UP2A00
Zoro #
G005128157
UPC #
190145491419
Country of Origin
Italy

Dimensions

Overall Height
5.13 in
Overall Length
5.5 in
Face to Face Dimension
5 1/8 in
Overall Width
5.13 in
For Inlet Pipe Diameter
1/2 in, 3/4 in

Details

Item
Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/25 hp
Series
006E
Pump Type
Energy Efficient
Number of Speeds
Variable
Maximum Feet of Head
13 ft
Connection Type
Union
Maximum Flow Rate @ 10 Feet of Head
6 gpm
Maximum Flow Rate @ 15 Feet of Head
6 gpm
Maximum RPM
4,830 RPM
Series Family
00E
Nameplate Voltage
120V AC
Frequency
60 Hz
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Standards
ANSI, NSF, UL Listed
For Use With Potable Systems
Yes
Maximum Flow Rate @ 5 Feet of Head
9 gpm
Amps
0.54 A
Flange or Union Included
Yes
Maximum Media Temperature
203 Degrees F
Body Gasket Material
EPDM
Maximum Operating Pressure
150 psi
Rotor Type
Wet
Maximum Flow Rate @ 1 Feet of Head
11 gpm
Media Temperature - Minimum
36 Degrees F
Pump Casing Material
Polypropylene
Media Temperature - Maximum
203 Degrees F
Full Load Current
0.54 A
Includes Union
No Union Included
Connection Standard
Union
Flow Rate - Maximum
11 gpm
Revolutions Per Minute - Maximum
4,830 RPM
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Volute
Volute Included
Operating Pressure - Maximum
150 psi
For Low Lead Compliance Level
CE
Feet of Head - Maximum
13 ft

Description

Circulating Pump, Connection Type Union, Face to Face Dimension 5 1/8 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/25 hp, Maximum Feet of Head 13 ft, Maximum Flow Rate @ 10 Feet of Head 6 gpm, Maximum Flow Rate @ 1 Foot of Head 11 gpm, Nameplate Voltage 120V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family 00E, Maximum Flow Rate @ 5 Feet of Head 9 gpm, Series 006E, Amps 0.54 A, Body Gasket Material EPDM, Frequency 60 Hz
