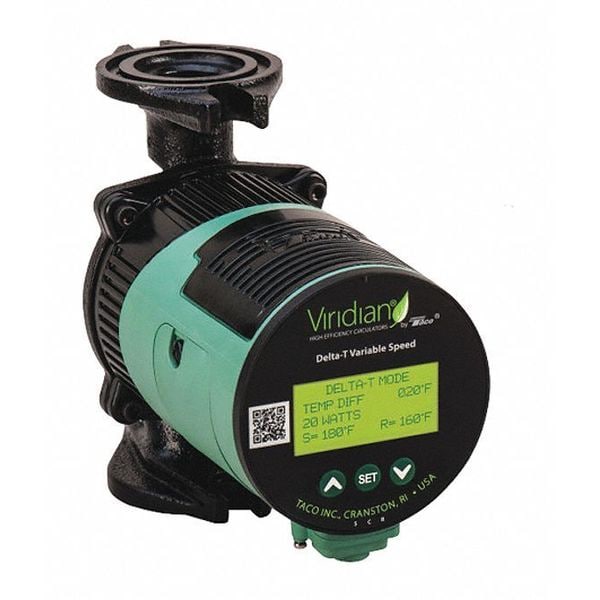

Taco Hydronic Circulating Pump, 1/20 hp, 110V/120V, 1 Phase, Flange Connection VT2218-HY2-FC1A00 - main

Hydronic Circulating Pump, 1/20 hp, 110V/120V, 1 Phase, Flange Connection

  • Mfr # VT2218-HY2-FC1A00

  • Zoro # G1618456

product price:  $704.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/20 hp
Inlet/Outlet Size
3/4 in to 1-1/2 in
Series
00E VT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VT2218-HY2-FC1A00
Zoro #
G1618456
UPC #
190145182898
Country of Origin
United States

Dimensions

Inlet/Outlet Size
3/4 in to 1-1/2 in
Face to Face Dimension
6 3/8 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/20 hp
Series
00E VT
Pump Type
Energy Efficient
Number of Speeds
Variable
Max. GPM @ Head
17 gpm @ 1 ft
Maximum Feet of Head
22 ft
Min. GPM @ Head
0 gpm @ 22 ft
Connection Type
Flange
Features
Delta T, Hi Efficiency
Mechanical Seal
No
Thermal Protection
No
Best Efficiency GPM @ Head
10 gpm @ 10 ft
Impeller Material
Composite
Standards
ETL, FCC
Shut-Off
22 ft
Shaft Material
Ceramic
Compliance
ETL
Amps
0.67 A
Includes
Integral Flow Check, Sensors
For Use With Potable Systems
Yes
Nameplate Voltage
110/120V AC
Flange or Union Included
No
Maximum RPM
4,200 RPM
Minimum Media Temperature
36 Degrees F
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 1 Feet of Head
17 gpm
Maximum Operating Pressure
125 psi
Maximum Flow Rate @ 20 Feet of Head
2 gpm
Series Family
VT
Maximum Flow Rate @ 15 Feet of Head
6 gpm
Body Gasket Material
EPDM
Maximum Media Temperature
230 Degrees F
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Maximum Flow Rate @ 10 Feet of Head
10 gpm
Rotor Type
Wet
Maximum Flow Rate @ 5 Feet of Head
14 gpm
Media Temperature - Minimum
36 Degrees F
Includes Flange
No Flange Included
Connection Standard
Flange
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Revolutions Per Minute - Maximum
4,200 RPM
Includes Volute
Volute Included
Media Temperature - Maximum
230 Degrees F
Operating Pressure - Maximum
125 psi
Full Load Current
0.67 A
For Low Lead Compliance Level
EX
Feet of Head - Maximum
22 ft
Flow Rate - Maximum
18 gpm
Pump Casing Material
Cast Iron

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/20 hp, Maximum Feet of Head 22 ft, Maximum Flow Rate @ 10 Feet of Head 10 gpm, Maximum Flow Rate @ 15 Feet of Head 6 gpm, Maximum Flow Rate @ 1 Foot of Head 17 gpm, Nameplate Voltage 110/120V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
