  9. Hydronic Circulating Pump, 1/20 hp, 120v, 1 Phase, Flange Connection

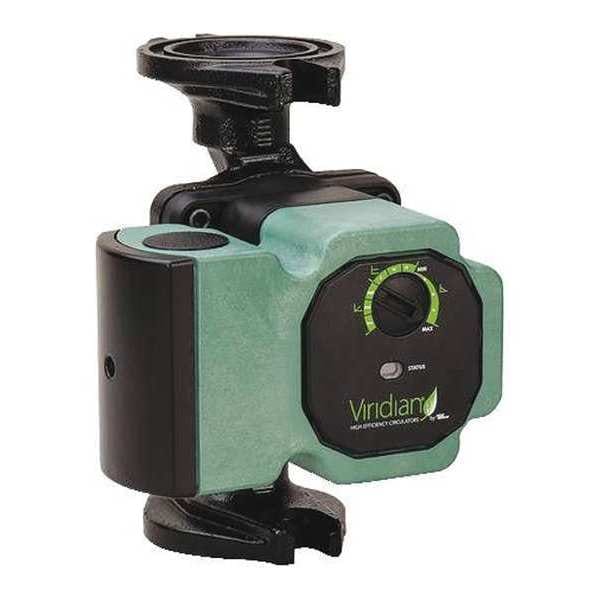

Taco Hydronic Circulating Pump, 1/20 hp, 120v, 1 Phase, Flange Connection VR1816-HY2-FC2A00 - main

Hydronic Circulating Pump, 1/20 hp, 120v, 1 Phase, Flange Connection

  • Mfr # VR1816-HY2-FC2A00

  • Zoro # G0492600

product price: $325.73
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/20 hp
Inlet/Outlet Size
3/4 in to 1-1/2 in
Series
00E VR
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VR1816-HY2-FC2A00
Zoro #
G0492600
UPC #
190145196536
Country of Origin
United States

Dimensions

Inlet/Outlet Size
3/4 in to 1-1/2 in
Face to Face Dimension
6 3/8 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/20 hp
Series
00E VR
Pump Type
Energy Efficient
Number of Speeds
Variable
Max. GPM @ Head
15 gpm @ 1 ft
Maximum Feet of Head
18 ft
Min. GPM @ Head
0 gpm @ 18 ft
Connection Type
Flange
Shut-Off
18 ft
Amps
0.54 A
Features
Hi Efficiency
Impeller Material
PES GF-30
Best Efficiency GPM @ Head
9 gpm @ 9 ft
Thermal Protection
No
Shaft Material
Ceramic
Standards
FCC, UL Listed
Compliance
UL
Mechanical Seal
No
Frequency
60 Hz
Series Family
VR
Maximum Flow Rate @ 15 Feet of Head
5 gpm
For Use With Potable Systems
Yes
Nameplate Voltage
120V AC
Flange or Union Included
No
Maximum RPM
4,830 RPM
Maximum Flow Rate @ 1 Feet of Head
15 gpm
Minimum Media Temperature
36 Degrees F
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Rotor Type
Wet
Maximum Media Temperature
230 Degrees F
Maximum Operating Pressure
125 psi
Maximum Flow Rate @ 10 Feet of Head
9 gpm
Maximum Flow Rate @ 5 Feet of Head
12 gpm
Pump Casing Material
Cast Iron
Includes Flange
No Flange Included
Media Temperature - Maximum
230 Degrees F
Revolutions Per Minute - Maximum
4,830 RPM
Operating Pressure - Maximum
125 psi
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Connection Standard
Flange
Flow Rate - Maximum
16 gpm
Feet of Head - Maximum
18 ft
Includes Volute
Volute Included
For Low Lead Compliance Level
EX
Full Load Current
0.54 A
Media Temperature - Minimum
36 Degrees F

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/20 hp, Maximum Feet of Head 18 ft, Maximum Flow Rate @ 10 Feet of Head 9 gpm, Maximum Flow Rate @ 15 Feet of Head 5 gpm, Maximum Flow Rate @ 1 Foot of Head 15 gpm, Nameplate Voltage 120V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family VR

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
