  9. Hydronic Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

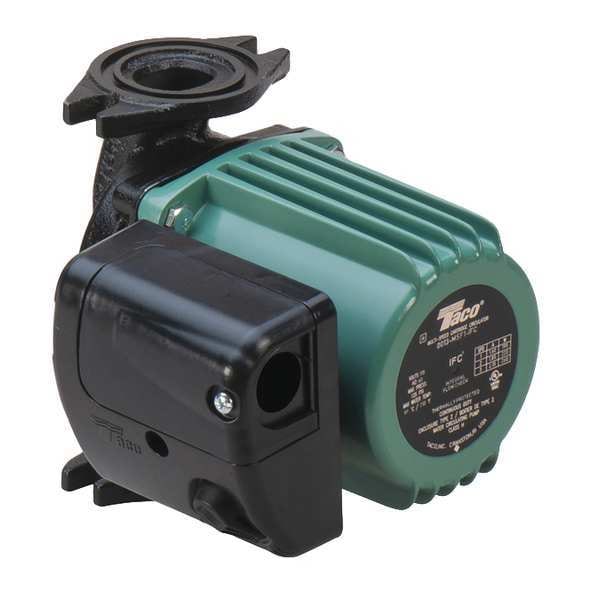

Taco Hydronic Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection 0013-MSF2-IFC - main

Hydronic Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 0013-MSF2-IFC

  • Zoro # G0385430

product price: $517.16
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/6 hp
Series
0013
Inlet/Outlet Size
3/4 in to 1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0013-MSF2-IFC
Zoro #
G0385430
UPC #
195445189073
Country of Origin
United States

Dimensions

Inlet/Outlet Size
3/4 in to 1-1/2 in
Face to Face Dimension
6 1/2 in
Overall Height
6.5 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Overall Width
6.25 in
Overall Length
7.25 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/6 hp
Series
0013
Pump Type
Multi-Speed
Number of Speeds
3
Max. GPM @ Head
30 gpm @ 1 ft
Maximum Feet of Head
33 ft
Min. GPM @ Head
0 gpm @ 31 ft
Connection Type
Flange
Mechanical Seal
No
Impeller Material
Composite
Shut-Off
30 ft
Thermal Protection
No
Standards
NSF, UL-CUS
Shaft Material
Ceramic
Amps
2.15 A
Compliance
NSF, UL
Best Efficiency GPM @ Head
16 gpm @ 18 ft
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Rotor Type
Wet
Series Family
00
Minimum Media Temperature
40 Degrees F
Nameplate Voltage
115V AC
Maximum Flow Rate @ 10 Feet of Head
26 gpm
For Use With Potable Systems
Yes
Flange or Union Included
No
Frequency
60 Hz
Maximum Flow Rate @ 1 Feet of Head
32 gpm
Maximum Flow Rate @ 25 Feet of Head
10 gpm
Maximum RPM
3,250 RPM
Maximum Operating Pressure
125 psi
Pump Housing Material
Cast Iron
Body Gasket Material
EPDM
Maximum Media Temperature
210 Degrees F
Maximum Flow Rate @ 15 Feet of Head
21 gpm
Maximum Flow Rate @ 30 Feet of Head
4 gpm
Maximum Flow Rate @ 20 Feet of Head
16 gpm
Maximum Flow Rate @ 5 Feet of Head
30 gpm
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Flange
No Flange Included
Includes Volute
Volute Included
Media Temperature - Maximum
210 Degrees F
Revolutions Per Minute - Maximum
3,250 RPM
For Low Lead Compliance Level
EX
Full Load Current
2.15 A
Flow Rate - Maximum
32 gpm
Feet of Head - Maximum
33 ft
Operating Pressure - Maximum
125 psi
Media Temperature - Minimum
40 Degrees F
Pump Casing Material
Cast Iron
Connection Standard
Flange

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/6 hp, Maximum Feet of Head 33 ft, Maximum Flow Rate @ 10 Feet of Head 26 gpm, Maximum Flow Rate @ 15 Feet of Head 21 gpm, Maximum Flow Rate @ 1 Foot of Head 32 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Series Family 00

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
