Taco

Hydronic Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection

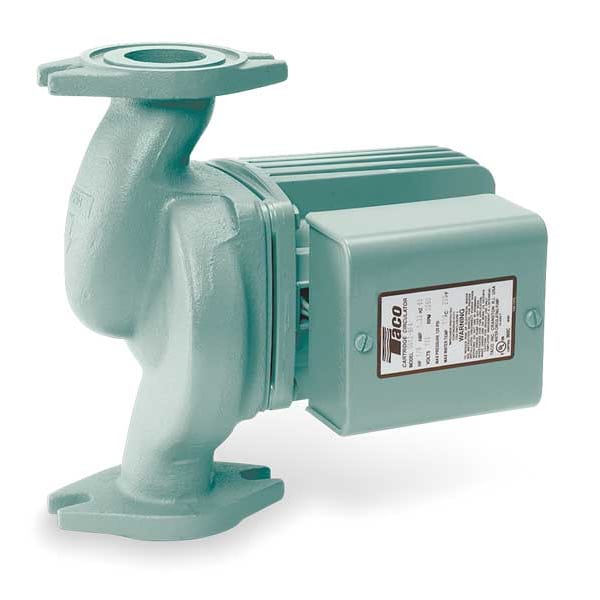

Taco Hydronic Circulating Pump,  1/8 hp,  115V,  1 Phase,  Flange Connection 0012-F4-1
Hover or click to zoom Tap to zoom
Key Features
  • Item: Hydronic Circulating Pump
  • Voltage: 115V
  • HP: 1/8 hp
  • Housing Material: Cast iron
  • Phase - Pumps: 1
  • Phase: 1
  • Inlet/Outlet Size: 2 in
  • Pump Type: Permanent Split Capacitor, Impedance Protected
See full product details
$506.73 3% off
$488.40

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Taco #0012-F4-1 Specifications

  • Item: Hydronic Circulating Pump
  • Voltage: 115V
  • HP: 1/8 hp
  • Housing Material: Cast iron
  • Phase - Pumps: 1
  • Phase: 1
  • Inlet/Outlet Size: 2 in
  • Pump Type: Permanent Split Capacitor, Impedance Protected
  • Connection Style: Flange
  • Max. GPM @ Head: 50 gpm @ 1 ft
  • Min. GPM @ Head: 25 gpm @ 10 ft
  • Series: 0012-f4-1
  • Shaft Material: Ceramic
  • Width: 6 in
  • Voltage - Pumps: 115V AC
  • Length: 8 5/8 in
  • Loop Configuration: Closed
  • Face to Face Dimension: 8 1/2 in
  • Best Efficiency GPM @ Head: 24 gpm @ 10 ft
  • Drive Type: Direct
  • Standards: UL-CUS
  • Manufacturers Warranty Length: 3 yr
  • Max. Temp.: 230 Degrees F
  • Includes: 2 in Flange Gaskets
  • RPM: 3,250 RPM
  • Mechanical Seal: No
  • Flange/Union Included: Yes
  • Number of Speeds: 1
  • HVAC Circulating Pump Type: Hydronic Circulating Pump
  • Amps: 1.33
  • Shut-Off: 14 ft
  • Max. Operating Pressure: 125 psi
  • Housing Material - Pumps: Cast Iron
  • Impeller Material: Polypropylene
  • Thermal Protection: Impedance
  • Pump Mount: In Line
  • Overall Height: 8.5 in
  • For Use With: Potable Systems
  • Overall Width: 5.5 in
  • Overall Length: 8.63 in
  • Length (Straight Wireway): 8 5/8 in
  • Nameplate Voltage: 115V AC
  • Horsepower: 1/8
  • Maximum RPM: 3,250 RPM
  • Series Family: 00
  • Brand and Connection Combo Broad: Taco, Flanged
  • Frequency: 60 Hz
  • Compatible Discharge Pipe Size: 2 in
  • Maximum Media Temperature: 230 Degrees F
  • Rotor Type: Wet
  • Maximum Flow Rate @ 15 Feet of Head: 0 gpm
  • Body Gasket Material: EPDM
  • Maximum Flow Rate @ 50 Feet of Head: [DELETE]
  • Compatible Intake Pipe Size: 2 in
  • Flange or Union Included: Yes
  • For Use With Potable Systems: Yes
  • Pump Housing Material: Cast Iron
  • Minimum Media Temperature: 40 Degrees F
  • Phase and Brand: TACO Single Phase
  • Maximum Flow Rate @ 5 Feet of Head: 45 gpm
  • Manufacturer Warranty Length: 3 yr
  • Maximum Operating Pressure: 150 psi
  • Maximum Flow Rate @ 1 Feet of Head: 50 gpm
  • Maximum Flow Rate @ 10 Feet of Head: 25 gpm
  • Maximum Feet of Head: 15 ft
  • Connection Type: Flange
  • Brand and Connection Combo: TACO , Flange Connection
  • Country of Origin (subject to change): United States

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/8, Maximum Feet of Head 15 ft, Maximum Flow Rate @ 10 Feet of Head 25 gpm, Maximum Flow Rate @ 15 Feet of Head 0 gpm, Maximum Flow Rate @ 1 Foot of Head 50 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 45 gpm

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
