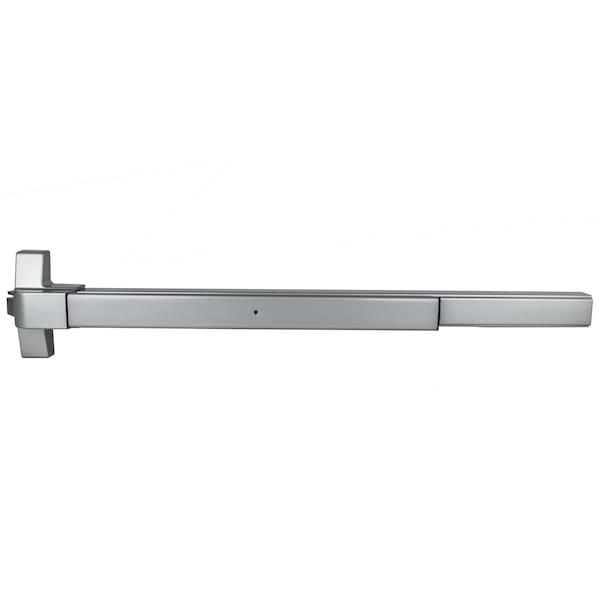

500 Series Aluminum Grade 1 Commercial 36 in. Old Style Rim Panic Exit Device
Mfr # ED-501-O-AL
Zoro # G101860999
Key Features
Specifications
Product Information
Dimensions
Details
Description
The Trans-Atlantic 500 series "Old Style Rim" exit device is suitable for hollow metal or wood doors where there is no projection on the surface. It's appropriate for commercial and industrial applications where heavy duty usage is anticipated such as office buildings, retail spaces and hotels. Moreover, it fits with doors up to 36 in. wide. It comes with a strike plate, filler plate and latch. However, the exterior lever trim is sold separately. These series meet the performance standards of Grade 1 and ADA compliant exit devices. Item is only available in Aluminum finish.
- •Heavy duty old style rim panic exit device
- •Compatible with wood and hollow metal doors from 26in. to 36in. wide
- •Meets the standards of Grade 1 and ANSI A156.3 - Non fire rated
- •Suitable for hollow metal or wood doors
- •Set up for dogging & includes dogging hex key
- •Made from solid steel for more durability
- •Comes non-handed / reversible
- •Supplied with mounting hardware
- •Comes with standard strike and shim
- •Comes with a plastic end cap
- •Can be cut down to 26 in. in length
- •Easy to install
- •Stile or head width should be 3 in. minimum
- •Door thickness: 1-3/4 to 2 in.
- •Door width: 26 to 36 in.
- •Projection: 2-1/4 in.
- •Aluminum finish
- •UL listed SA32524
- •ADA compliant
- •1 Year mechanical and finish warranty
